Product Description

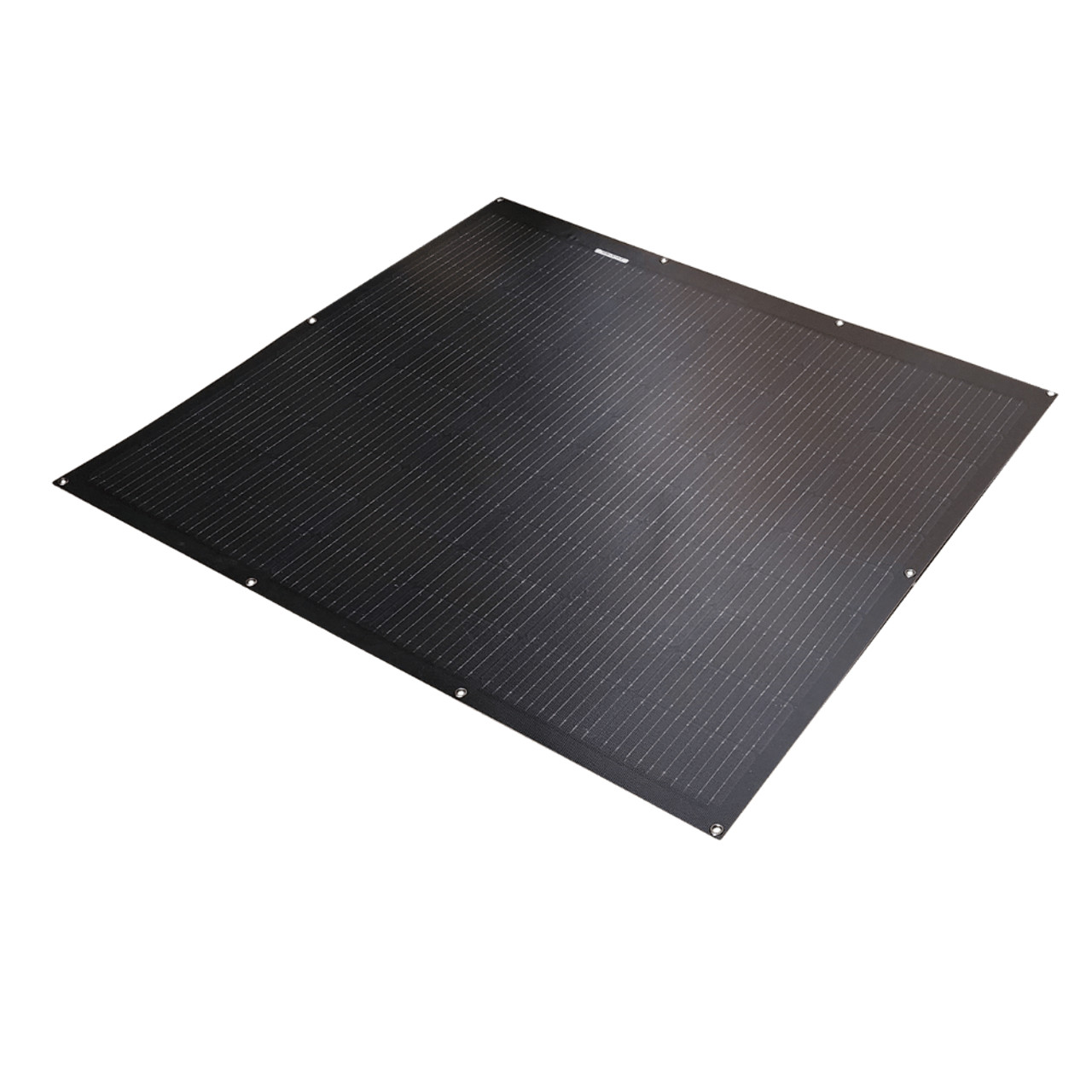

Sunman eArc 200W Black Square Flexible Solar Panel with Eyelets - Junction Box Underneath
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology,
- Highly efficient monocrystalline cells for optimal energy production,
- Compact and Efficient Mono-PERC Solar Panels,
- 10 Factory Fitted Eyelets,
- Junction Box Underneath,
- Flexible design for easy installation on various surfaces,
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency,
- CEC-approved for residential and commercial use,
- 10-year product warranty for buildings and 5 years for mobile applications.
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.
Optional Mounting Solutions:
Multiple mounting options available, ensuring a secure and efficient installation that meets your specific needs. Please carefully follow the mounting instructions here which include the below:
- Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
- Eyelets: The panel can be secured using bolts or screws through eyelets
Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.
In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.
Specifications
Model | SMF200J-6X10DB-Se | |||
Solar cells | 40 (4x10) | |||
Maximum Power (Pmax) | 200 | |||
Maximum Power Voltage (Vmp) | 34.7 | |||
Maximum Power Current (Imp) | 5.78 | |||
Open-circuit Voltage (Voc) | 41.1 | |||
Short-circuit Current (Isc) | 6.66 | |||
Operating Temperature (°C) | -40 °C to 85 °C | |||
Maximum System Voltage | 1000 V DC (IEC) | |||
Maximum Series Fuse Rating | 20 A | |||
Application Class | Class A | |||
Power Tolerance | 0/+5 W | |||
Backsheet | White | |||
Junction box | IP 68 rated (each j-box has one by-pass diode) | |||
Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm | |||
Connector | MC4 compatible | |||
Dimensions (L x W x H) | 1159 x 1026 x 2mm | |||
Dimensions Incl JB (L x W x H) | 1159 x 1026 x 22mm |
SKU | eASMF200J-6X10DB-e |
MPN # | SMF200J-6X10DB-Se |
Visit Sunman's Official eArc Webpage for More Details
As featured in ABC News - Sunman is 14% owned by the Clean Energy Finance Corporation.
The Clean Energy Finance Corporation is a is a 100% Australian Government-owned Green Bank which invests in creating a more sustainable Australia.
Features of Sunman eArc Solar Panels
eArc by Sunman solar panels are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.
Durable. Built to last.
It's durable, reliable and long term. Unlike cheaper entry level competitors, eARC has actually passed all the same durability tests as glass panels, and further tests beyond that. It performs the same as glass panels, without the glass. It's passed hail, fire, ammonia corrosion, salt mist, damp heat, UV exposure and more tests. eARC can withstand prolonged exposure to Australia's open air environment.
Tougher, lighter, thinner and more durable
-
Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
-
Light - 175W frameless is 3kg
-
Thin - 2mm
-
Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
-
Strong - rated 2400 pascals for wind and 2400 pascals for load
-
Durable - 10 year product warranty for building and 5 years for mobile application
-
Output - Efficient monocrystalline cells, 25 year performance guarantee
-
Proven tough by a decade of installations in Australian under all Australian conditions
Development of the new waterproof composite polymers and panel structure was accelerated by funding of $3.3M from the Australian Renewable Energy Agency (ARENA) to achieve the same durability as conventional solar panels.
eArc panels have been installed on the world’s first solar powered train in Byron Bay and 812 (235kW) panels have been installed onto the Sydney Maritime Museum’s Heritage Building which could not support heavy glass framed solar panels. To date more than 6MW of eArc capacity has been installed in Australia.
eArc has obtained a series of other certifications for reliability, including:
Accreditations by Sunman eArc:
eArc is the first module of its kind to pass the same durability and safety tests as glass modules, including IEC 61215:2016, IEC61730:2016 and UL1703 (USA). eArc has also passed additional module quality assessments, including 3000 hours of damp heat, UV exposure (25 years equivalent), PID, salt mist and ammonia corrosion tests. eArc is CEC (Clean Energy Council) approved in Australia.
But I Do Not Trust Lightweight or Flexible Solar Panels:
We get it. eARC is a new innovative solar product so its hard to know if its trustworthy. However, it has passed all the same durability tests as glass panels and further tests beyond that still. It’s CEC approved and certified, and backed by the Australian government through the Clean Energy Finance Corporation.
We are starting to see new similar innovations enter the market. eARC has just established a gigawatt size factory to cater to enormous global demand. It has a 25 year performance warranty and was innovated by Dr Shi, an adjunct professor at the UNSW with over 100 papers published, over 60 patents in photovoltaics. eARC is involved in vehicle integrated photovoltaics and building integrated material photovoltaics.
What About the Heat from the Solar Panel Directly Touching the Roof:
The reason eARC can be quickbonded without any mounting support allowing for airflow underneath is because eARC doesn’t have any glass. Conventional glass panels need 200mm clearance because they have glass, and glass is an insulator. In fact, with eARC, heat goes out from the front of the panel. eARC is cooler than conventional glass panels.
A robust, lightweight, flexible solar panel that is perfect for caravans, motorhomes, boats, golf carts, trains, buses and other applications.
