Sunman eArc 100W - Semi-Flexible Solar Panel - Frameless - Junction Box on Top - Mono PERC Cells
2022 VERSION - Now even smaller footprint using the latest cut Mono-PERC cells!
Description:
These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.
Made with a Patent Pending composite material similar to those used in airplane windows. These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass.
Mounting Options (Additional Cost):
- The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
- One roll of very high bond double sided adhesive tape
- Polycarbonate strips
- Installation via very high bond double sided adhesive tape provides a low profile secure bond. This includes:
- The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips. Installation then becomes a simple peel and stick.
- A structural silicone (Fix8) can be used to adhere the panel to a surface.
- The panel can be secured using bolts or screws through eyelets in the panel.
Instructions are sent with shipping tracking notification.
Specifications:
| Dimensions (LxWxH) | 1093mm x 552mm x 2mm |
| Weight | 2.1kg |
| Cell Type | Monocrystalline PERC |
| Cell Configuration | 36 (3x12) |
| Maximum Power (Pmax) | 100 Watt |
| Voltage Maximum Power (Vmp) | 21.2V |
| Current Maximum Power (Imp) | 4.75A |
| Open Circuit Voltage (Voc) | 25.2V |
| Short Circuit Current (Isc) | 5.12A |
| Operating temperature (℃) | -40 ℃ to 85 ℃ |
| Maximum system voltage | 1000V DC (IEC) |
| Maximum series fuse rating | 20A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Backsheet Colour | White |
| Junction Box | IP 68 rated (each j-box has one by-pass diode) |
| Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm |
| Cable Type | PV1-F, 4mm2 (tinned copper) |
| Connector Type | MC4 |
Features:
-
eArc (formerly eArche) are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.
Tougher, lighter, thinner and more durable
-
Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
- This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
-
Light - 100W frameless is 1.9kg
-
Thin - 2mm
-
Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
-
Strong - rated 2400 pascals for wind and 2400 pascals for load
-
Durable - 10 year product warranty for building and 5 years for mobile application
- 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
-
Output - Efficient monocrystalline cells, 25 year performance guarantee
-
The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
Development of the new waterproof composite polymers and panel structure was accelerated by funding of $3.3M from the Australian Renewable Energy Agency (ARENA) to achieve the same durability as conventional solar panels.
eArc panels have been installed on the world’s first solar powered train in Byron Bay and 812 (235kW) panels have been installed onto the Sydney Maritime Museum’s Heritage Building which could not support heavy glass framed solar panels. To date more than 1MW of eArche capacity has been installed in Australia
eArc has obtained a series of other certifications for reliability, including:
A robust, lightweight, flexible solar panel that is perfect for caravans, motorhomes, boats, golf carts, trains, buses and other applications.
Edging options:

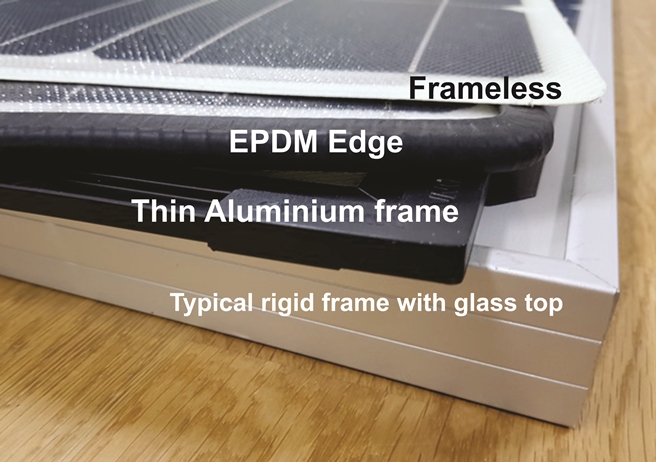

1) Frameless
No edge on the 2mm panel provides a thin, low profile installation with good flexibility.
Warranty:
1. Limited Product Warranty for Mobile/Marine Applications
Sunman (Zhenjiang) Company Limited (“SUNMAN”) warrants that its photovoltaic modules together with the DC connector cable assemblies are free from defects, if any, in materials and workmanship under normal application, use, installation and service conditions for a period of pending 60 months from the delivery (Incoterms 2010) of SUNMAN modules (“Modules”) to the
original end customer (“Customer”), or 12 months after the date of production of the Modules as indicated in the serial number, whichever date is earlier. If Modules become malfunction or inoperative due to defect in material or workmanship during such pending 60 months period set forth above, SUNMAN will, at its own option, either repair or replace the Modules in problem, or refund a reasonable portion of the purchase price as paid by the Customer(“Purchase Price”). The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under this Limited Warranty.
2. Limited Peak Power Warranty and Limited Remedy SUNMAN warrants the percentage of nominal power output as below:
A. A solar Module’s performance warranty will typically guarantee 90% of rated power output at 5 years
B. SUNMAN warrants each Module against defects in materials and workmanship that result in the failure of the Modules to produce the warranted percentage specified above of the nominal power output for the Module set forth in SUNMAN 's product datasheet. If SUNMAN determines in its discretion that any Module is not providing the warranted percentage of the nominal power output due to Modules’ defects in material or workmanship attributed to SUNMAN , who will, at its sole option and discretion, either [1] make up such loss in power by providing to Customer additional Modules; or [2] repair or replace the defective Modules including free shipping to the place supplied by SUNMAN ; or [3] refund Customer such loss proportion arising from unqualified power output which less than the warranted percentage of the nominal power. The remedies set forth in Section 2 are the sole and exclusive remedies provided under the limited minimum Peak Power Warranty.
3. Exclusions and Limitations;
A. Warranty claims, in any event, shall be filed in writing to SUNMAN or its authorized distributors within the applicable warranting period.
B. These Limited Warranties will not be applied to normal wear and tear, to the natural effects of exposure to weather conditions over time, or to the Modules which under SUNMAN's sole judgment have been subjected to:
- Misuse, abuse, neglect, vandalism or accident;
- Alteration, improper installation or application;
- Repair or modifications that do not strictly follow the manufacturer’s instructions;
- Non-observance of SUNMAN’s maintenance instructions;
- Power failure, electrical spikes or surges, lighting, flood, fire, accidental breakage or other events outside the control of SUNMAN.
C. These Limited Warranties only cover the transportation costs for shipment of any repaired or replaced Modules to the place applied by SUNMAN. Any costs for returning the Modules to SUNMAN or its authorized agents and authorized distributors, or costs associated with installation, removal or reinstallation of the Modules, shall be borne by the end user Customers.
D. Warranty claims will not be honored if the type or serial number of SUNMAN Modules have been altered, removed or made illegible without written authorization from SUNMAN.
4. Transferability
This warranty is extended to the original end-user purchaser, and is also transferable to any subsequent owner of the location or holder of the product when Module(s) remain at their original installed location upon satisfactory proof of succession or assignment.
5. Obtaining Warranty Performance
In order to obtain warranty service under the SUNMAN Limited Warranty, the end user Customer should promptly notify SUNMAN regional customer service center. Together with the notification, the complete serial number printed on the module label and the shipment date of its Modules shall be marked as well. If the Modules will be returned for inspection, repair or replacement by SUNMAN, SUNMAN will give the Customer a Return Merchandise Authorization (RMA). However, SUNMAN will not accept a return of any Modules without a RMA.
6. Disputes
No action, regardless of form, arising out of or in any way connected with this Limited Warranty, may be brought by the end user Customer more than one (1) year from the date when causes of action occurred.
7. Various
The repair or replacement of the Modules or the supply of additional Modules does not lead to a new commencement of warranty terms, nor shall the original terms of this Limited Warranty be extended. Any replaced Modules shall become the property of SUNMAN. SUNMAN shall at its own options to deliver another type of PV Modules (different in size, color, shape, or power), either a new brand or the original one, in case of that SUNMAN has discontinued producing the module in question at the time of the claim.
8. Force Majeure
SUNMAN shall not be in any way be responsible or liable to the end user Customer or any third-party arising out of any non-performance or delay in performance of any terms and conditions of sale, including this Limited Warranty, due to fire, flood, blizzard, hurricane, thunder, acts of God, changes of public policies, terrorism, war, riots, strikes, unavailability of suitable and sufficient labor or materials and other events which are out of control of SUNMAN.
NOTE: “Peak Power” is the power in watt peak that a PV-module generates in its maximum power point. SUNMAN measurements are as follows (a) light spectrum of AM 1.5, (b) an irradiation of 1,000W per m2 and (c) a cell temperature of 25 degree Centigrade. The measurements are carried out in accordance with IEC61215 as tested at the junction box terminals per the calibration and testing standards of SUNMAN valid at the date of manufacture of the PV-Modules. SUNMAN’s calibration standards shall be in compliance with the standards applied by international institutions accredited for this purpose.
