Product Description

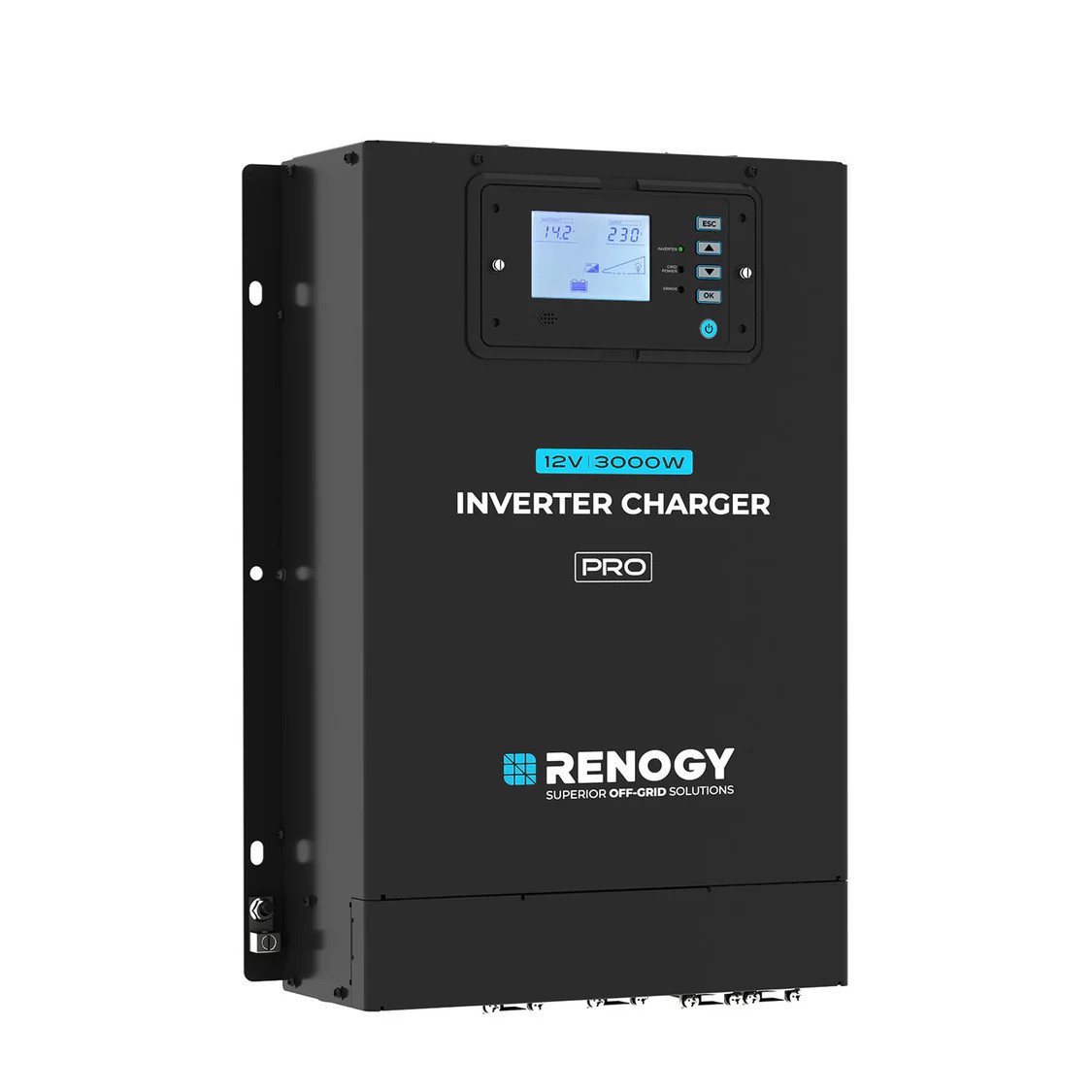

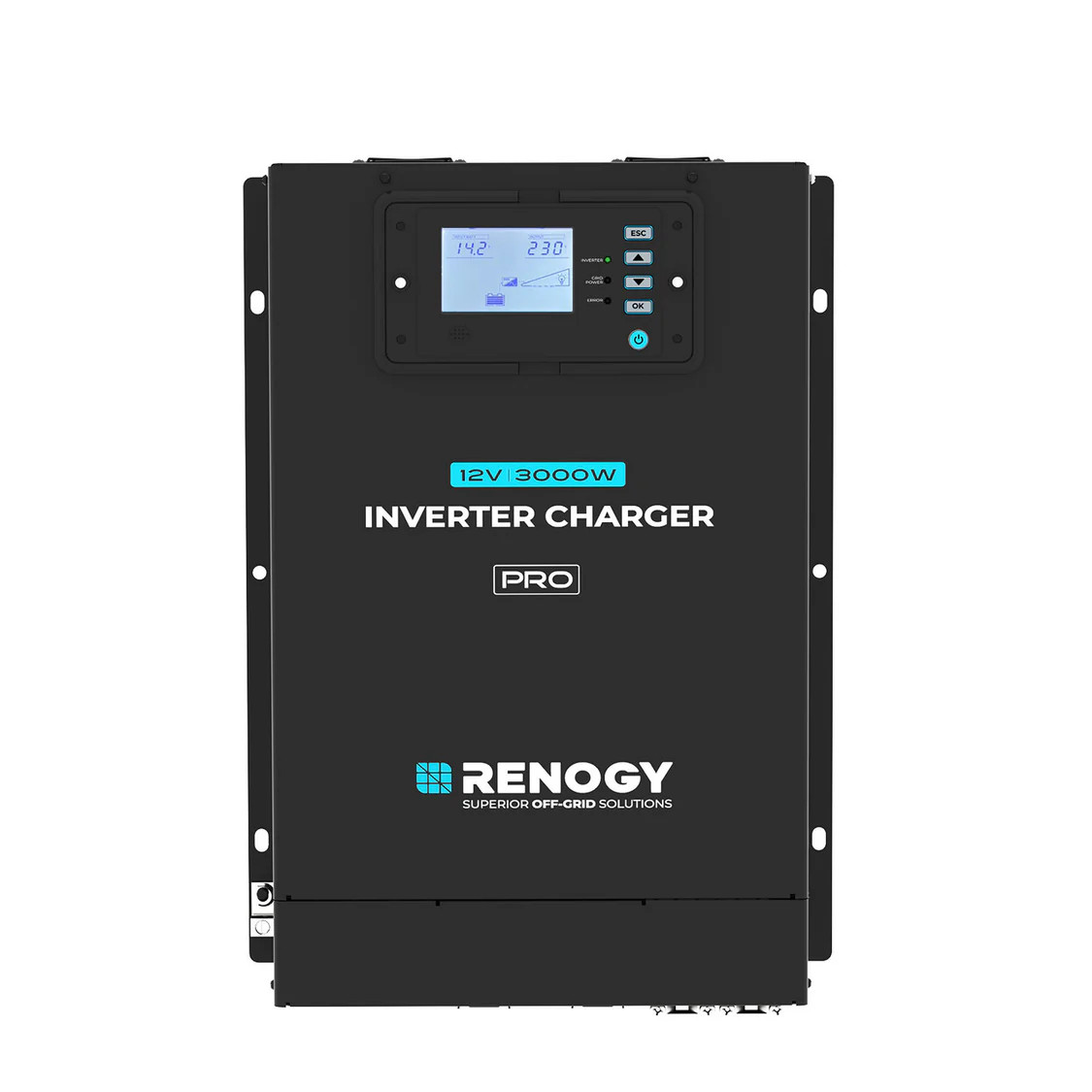

Renogy Pro 12V 3000W HF Inverter Charger
The Renogy Pro 12V 3000W HF Inverter Charger delivers high-efficiency 12V DC to 240V AC conversion in a compact, lightweight design. Perfect for RVs, caravans, boats, and off-grid cabins, it combines pure sine wave inversion with intelligent battery charging and built-in RCD protection. The detachable LCD panel and optional BT-2 Bluetooth module enable convenient remote monitoring via the DC Home app.With over 91% efficiency, ultra-low standby power (<10W), and a rapid 20ms transfer time, this all-in-one unit ensures uninterrupted power and maximum energy savings for both mobile and backup applications.Key Features
- 3000W Continuous Output – Reliable power for home appliances, tools, and electronics.
- Pure Sine Wave Output – Safe for sensitive devices like laptops, TVs, and medical equipment.
- Built-in RCD Protection – Instantly detects leakage and cuts power for enhanced safety.
- 6000W Peak Surge – Handles startup loads of motors, fridges, and air conditioners.
- Detachable LCD & Bluetooth Ready – Remote monitoring with BT-2 module and DC Home app.
- 91%+ Efficiency & <10W Standby – Minimises energy waste and extends battery life.
- 20ms Transfer Switch – Seamless transition between grid/generator and battery power
Renogy Pro 12V 3000W HF Inverter Charger
No Bulk, Just Pure Efficiency.

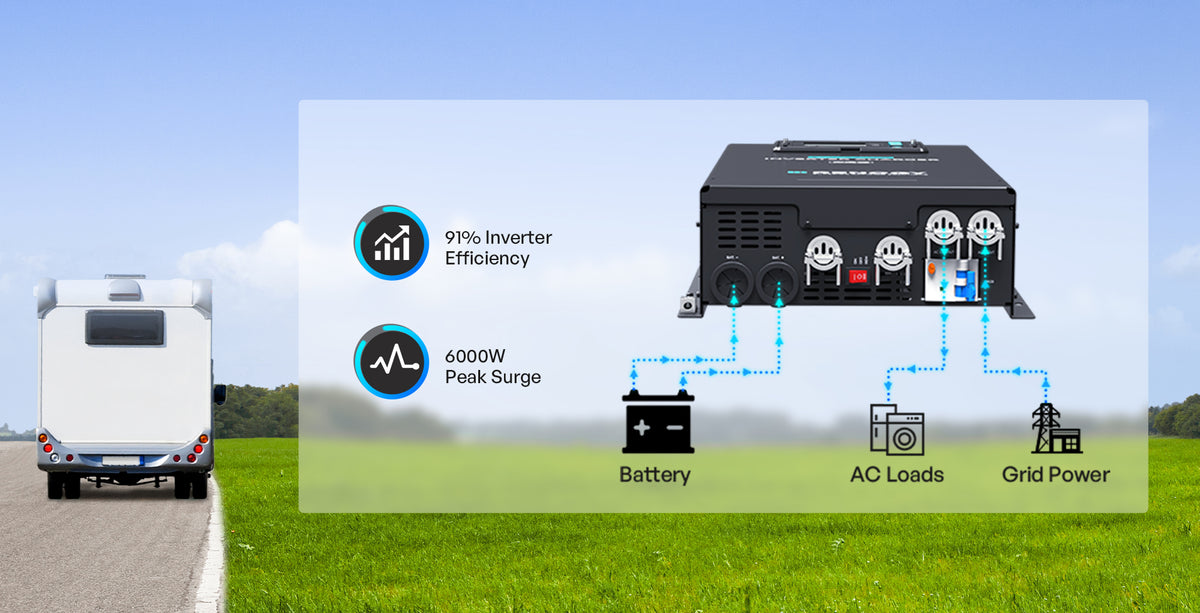

All-in-One Charging and Power Solution
Enjoy seamless battery charging and AC power conversion in a single device.

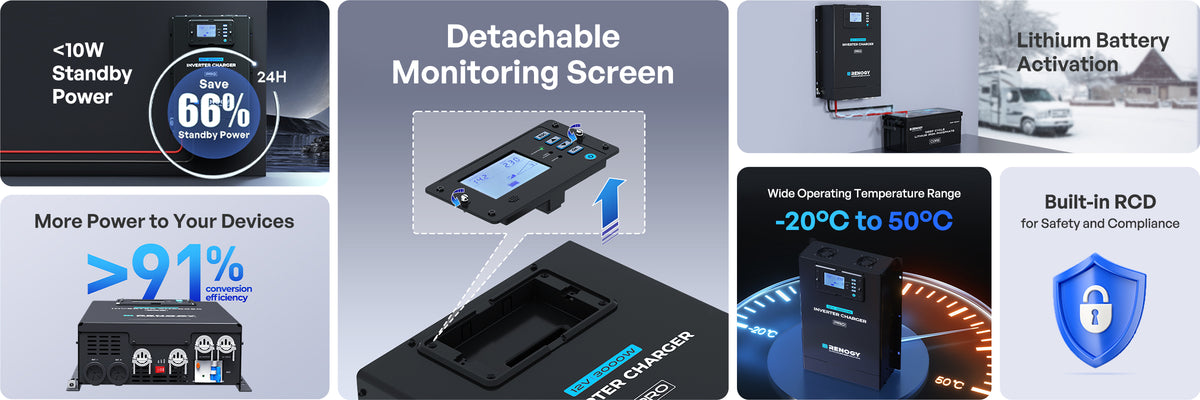

Low Self-Consumption

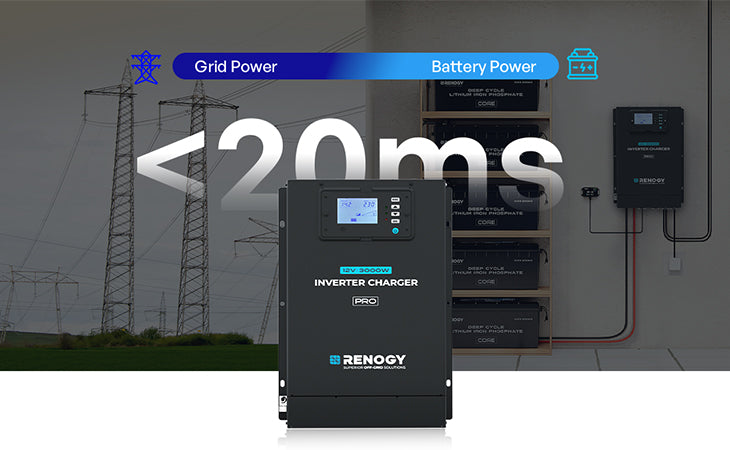

Seamless Power Switch

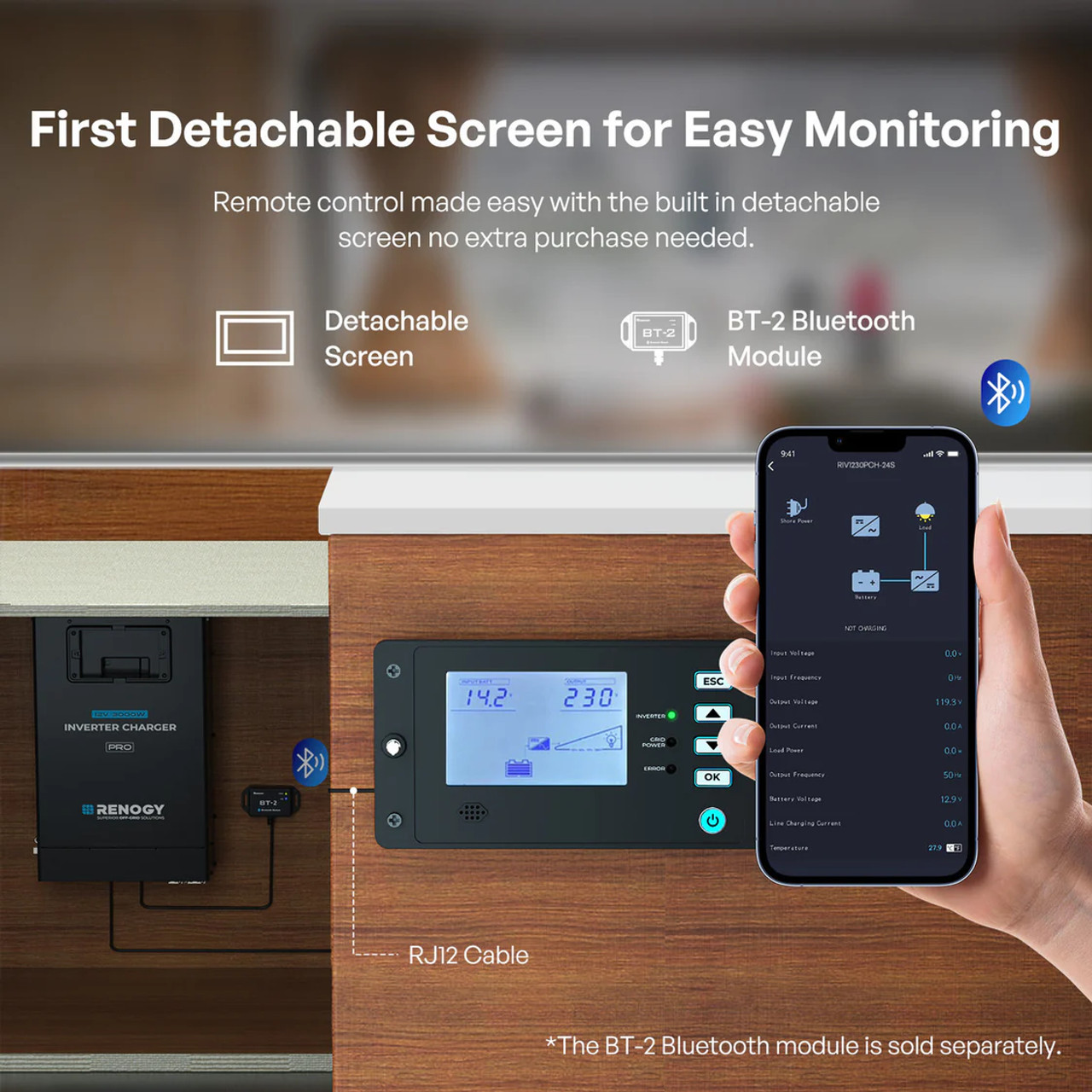

Flush Mount the LCD on Demand

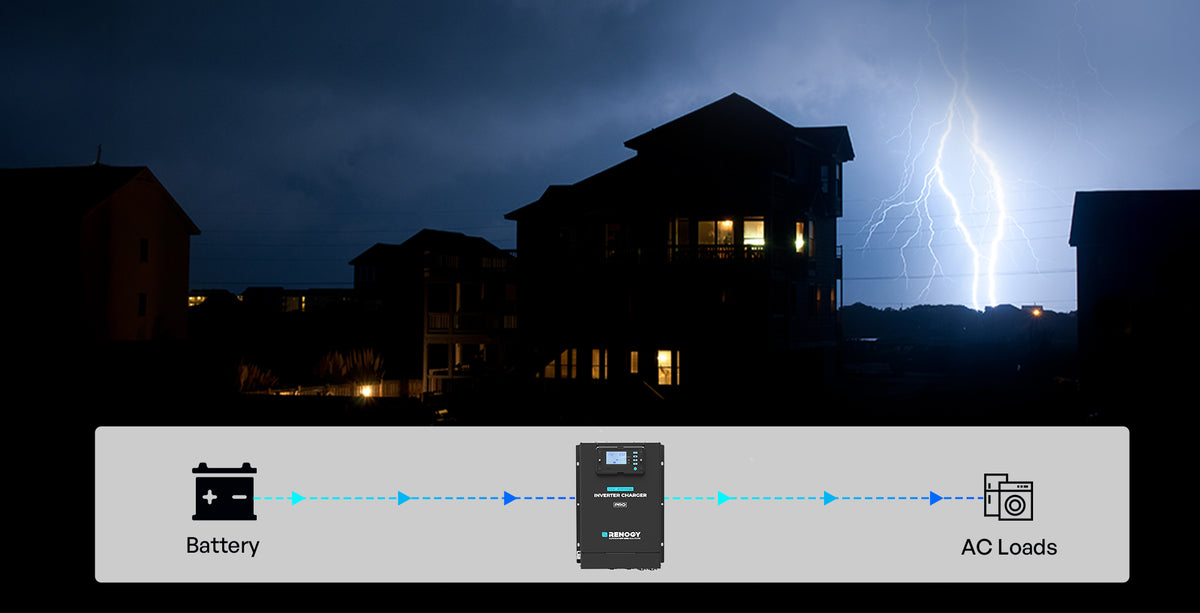

Reliable Backup Power You Can Trust
Keep your home powered during outages without worry, ensuring safety and comfort for your family.

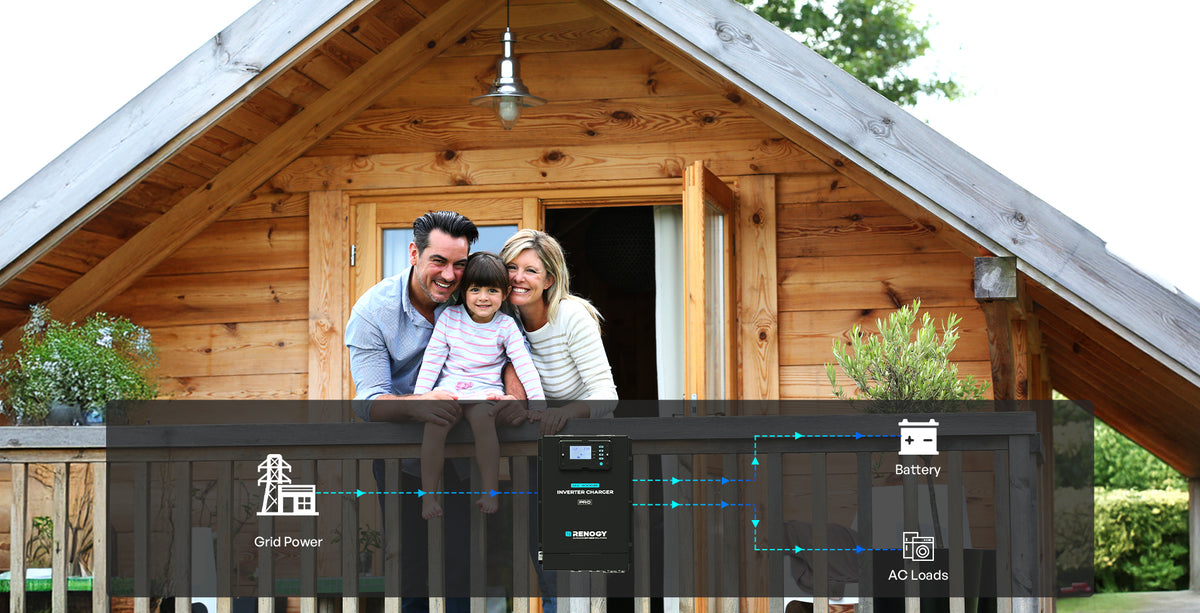

Stay Powered and Prepared Anytime
Efficiently charge your batteries and power your home with stable grid electricity for continuous energy and total preparedness.

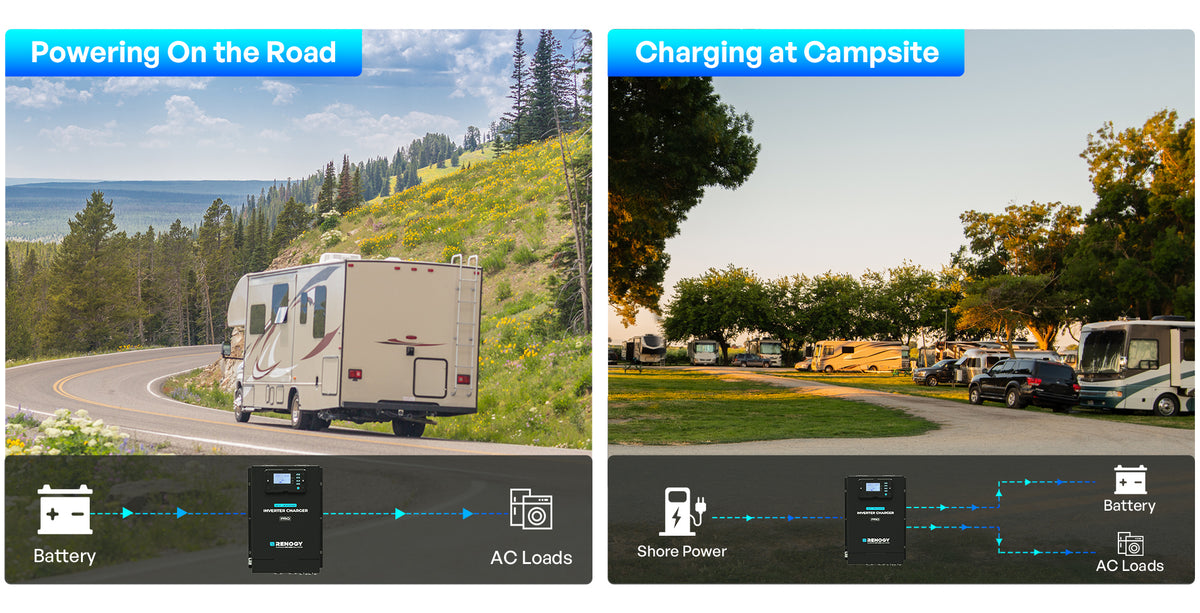

Partner for Every Journey
Power your RV on the road and recharge with shore power at camp.

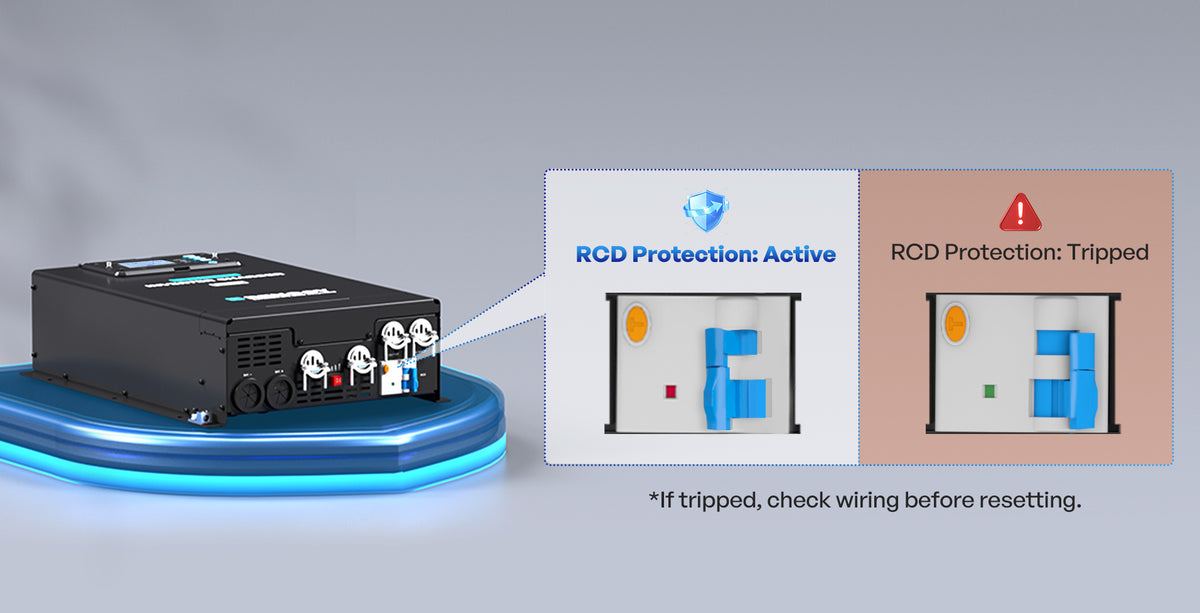

Stay Safe with Internal RCD Protection
Detects leakage faults instantly, cuts off power automatically, and restores with a simple switch flip.

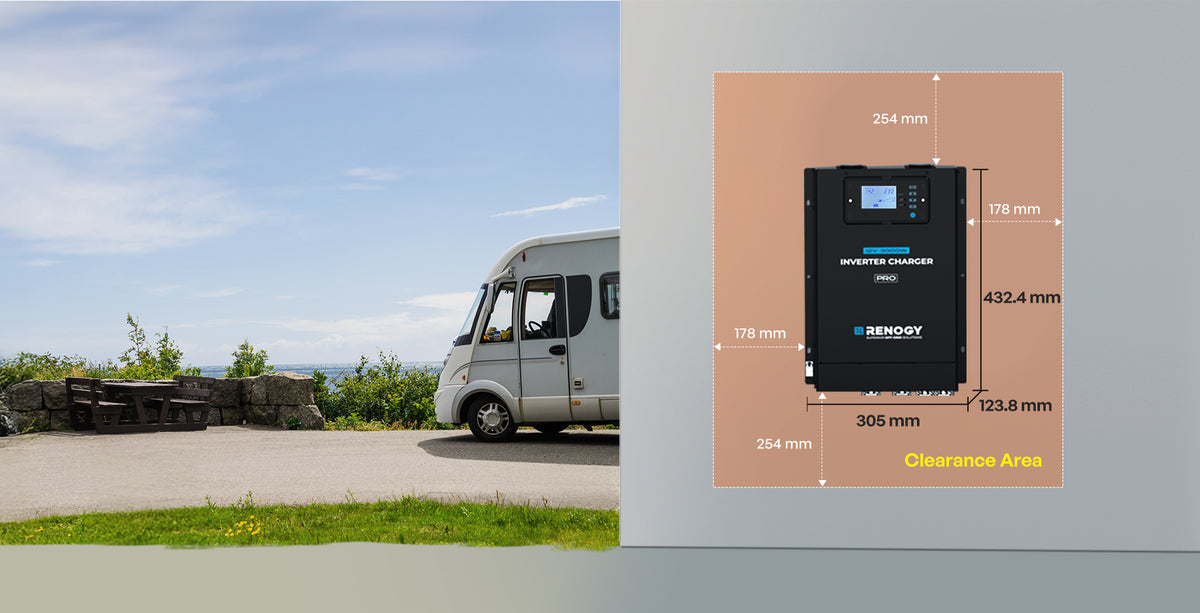

Ensure Clearance for Ventilation
Maintain required spacing around the unit for safe and efficient operation.
Pro 12V 3000W HF Inverter Charger Electrical Specifications
- Continuous Power 3000W
- Surge Power (Peak Power) 6000W
- AC Output Voltage Range 240VAC
- Output Frequency (Nominal)
- 50/60 Hz ± 0.1Hz，default 50Hz
- Output Waveform Pure Sine Wave
- Efficiency＞91% peak
- THD＜4%
- DC Input Voltage DC12V
- DC Input Voltage Range 10.5-15.5VDC
- No Load Current Draw <10W
- Output Current 5-120A Aadjustable,5A intervals
- Optimal Efficiency＞85% Peak
- Nominal Input Voltage 187-265Vdc
- Input Frenquency Range 40Hz-70Hz
- Transfer Time Max.20ms
- Transfer Rating 16A Automatic Transfer Switch
- Battery Types GEL, AGM, SLA, FLD, CAL, LI, USER
- Noise <55dB
- Operating Temperature -20-50℃/-4-122°F (Output power degrading at 86°F/30°C or higher)
- Dimensions 17.02 x 12.01 x 4.87in/432.4 x 305 x 123.8mm
- Storage Temperature -30-70℃/-22-158°F
Material and Workmanship Warranty
- Weight 17.9 lbs / 8.1 kg
- Humidity 0% ~ 95%
- Warranty 3 year
- Certifications-EMC AS/NZS 61000-6-3, AS/NZS 4268 and AS/NZS 2772.2
- Certifications-Safety AS/NZS 60335 and AS/NZS 4763
Package Includes
- Pro-12V 3KW HF Inverter Charger x 1
- "Self-tapping Screws ST6.3*16mm" x 8
- RJ12 Ethernet Cable (5m) x 1
- User Manual x 1
Manufacturers Info (Click on link and a new web page will open)
FAQs
Question 1: Can I use 2 x 100Ah lithium-ion batteries with this 3000W inverter?
Yes, but check your battery BMS continuous discharge rating. Most 100Ah LiFePO4 batteries are limited to ~100A; two batteries provide ~200A total (~2400W at 12V). For full 3000W continuous output, 3 x 100Ah batteries are recommended.
Question 2: How do I monitor the inverter remotely from my phone?
Pair the optional BT-2 Bluetooth module and download the free “DC Home” app from the App Store or Google Play. It displays real-time voltage, load, charging status, and more.
Question 3: Can this run an 1100W microwave without issues?
Absolutely—the 3000W continuous rating easily handles it. Ensure battery cables are heavy-gauge (≥50 mm² recommended) to avoid voltage drop.
Question 4: What is the built-in RCD protection?
The inverter includes a Residual Current Device that instantly detects earth leakage, cuts output power, and can be reset with the front switch—no external RCD required.
Question 5: Is this unit AS/NZS certified for Australia?
Yes, it meets AS/NZS 60335, AS/NZS 4763 (safety) and EMC standards AS/NZS 61000-6-3, AS/NZS 4268, AS/NZS 2772.2.
