Product Description
Renogy ONE Core Smart Monitor
Renogy ONE Core provides a comprehensive solution for energy monitoring and analysis, enabling users to monitor and analyze energy data at any time. Thanks to the ONE Connect 2.0 technology, Renogy ONE Core allows energy monitoring both locally through the in-built screen and remotely via Renogy ONE Portal and DC Home app. Additionally, the ONE Core features an RV leveling system for optimal stability and can function as a smart home hub, seamlessly connecting with other smart home appliances.
Key Features
- 24/7 Energy Analysis Monitor and analyze energy data anytime.
- Worldwide Monitoring Remote energy monitoring anywhere through ONE Connect 2.0
- Built-in RV Leveling Effortlessly adjust your RV’s position to achieve optimal stability and comfort.
- Smart Home Integration Function as a central hub for your smart home, seamlessly connecting and controlling all your smart home appliances.
- Easy Installation Simple setup process that ensures the device is perfectly level, eliminating the need for repeated adjustments.
- Over-the-Air (OTA) Updates Stay up to date with the latest features and improvements through continuous over-the-air updates.
Energy Data Analysis
Energy efficiency at your fingertips
Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

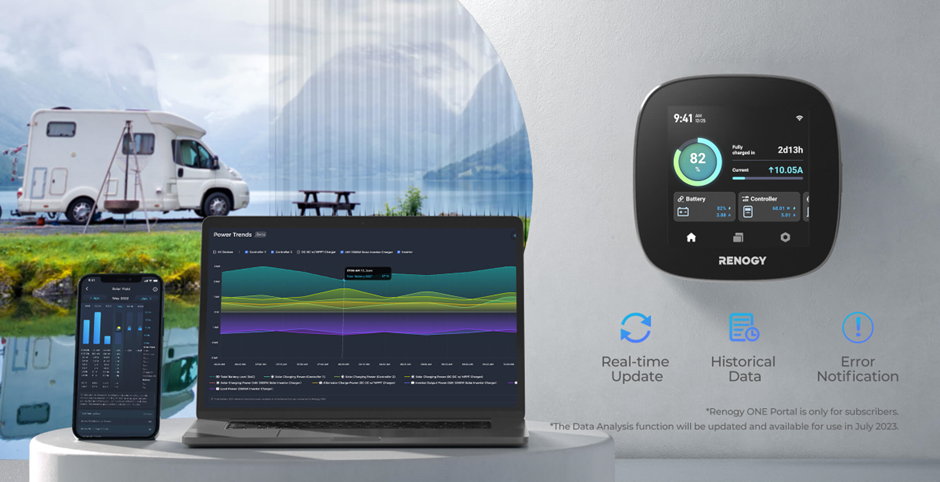

Remote Monitoring
Distance is not a problem
Remote energy monitoring in various scenarios.
One Command Center for Your Renogy Devices

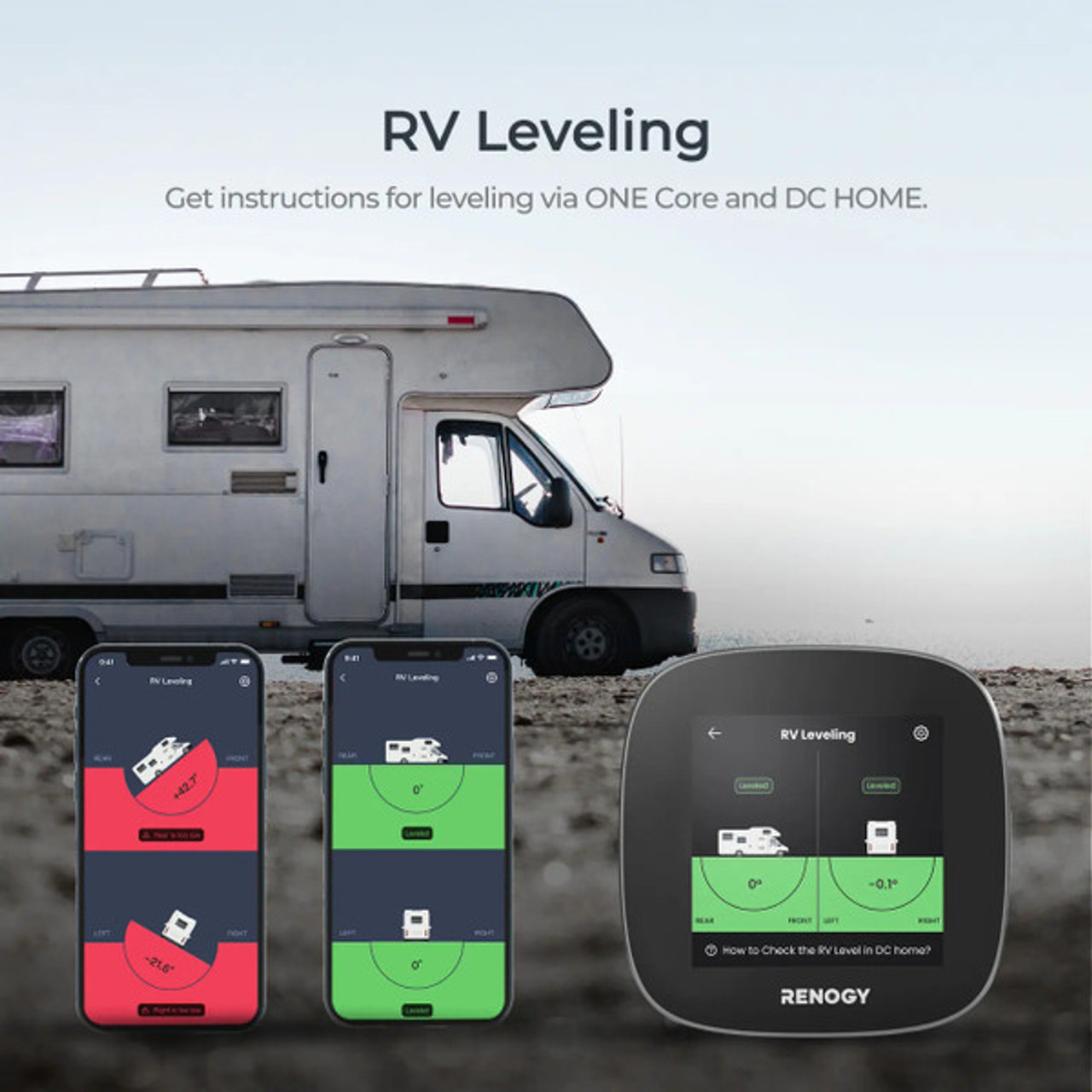

Need leveling for more comfort?
ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.
Built-in 6-axis leveling sensor
Highly accurate and responsive detection of changes in orientation and rotational movement.

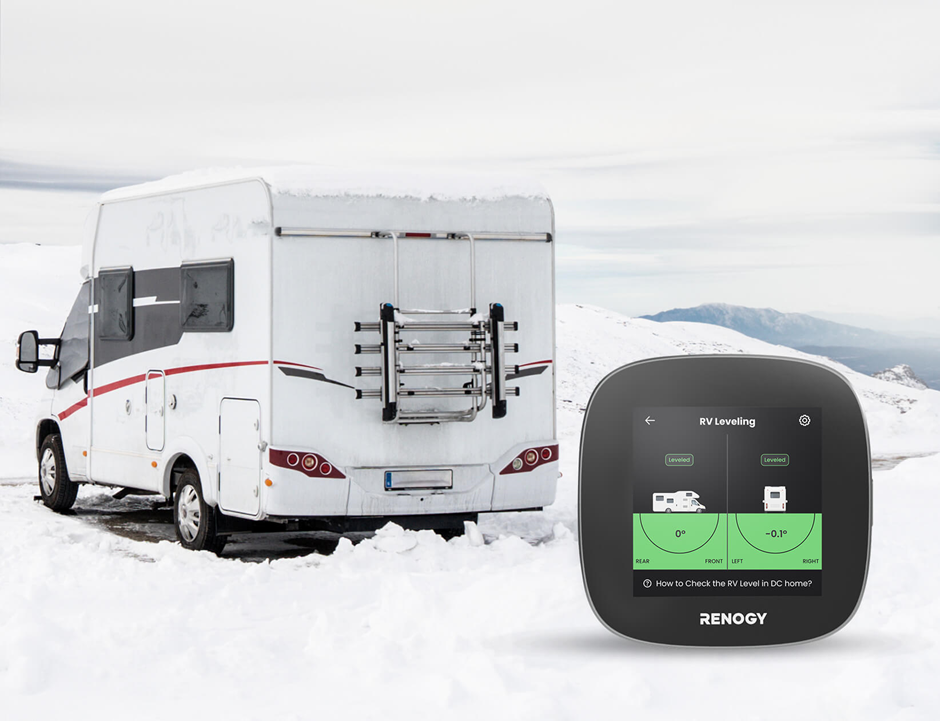

Real-time RV leveling status
Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.
Smart Automation
Make it a smart home

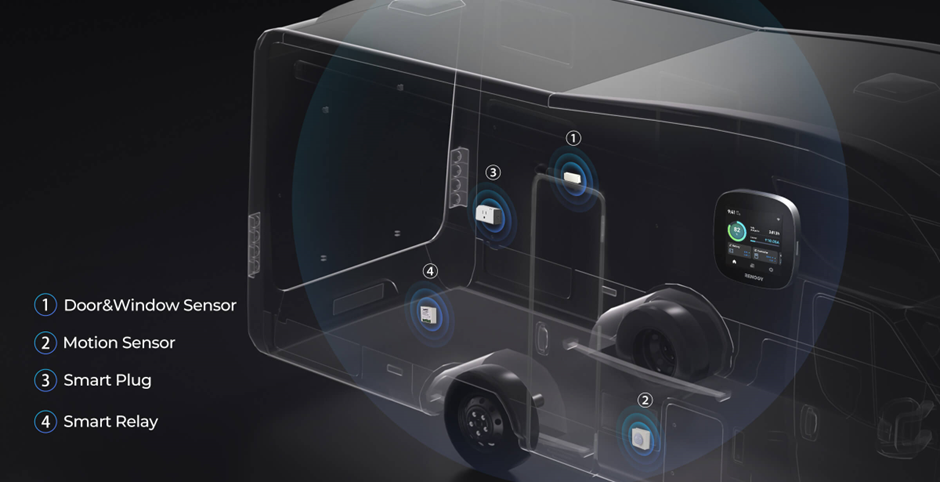

ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.
Security
Peace of mind with 24/7 security
Detect unexpected motions occurring in your RV, keep you alert and informed of anything suspicious.
Effortless installation
Step 1

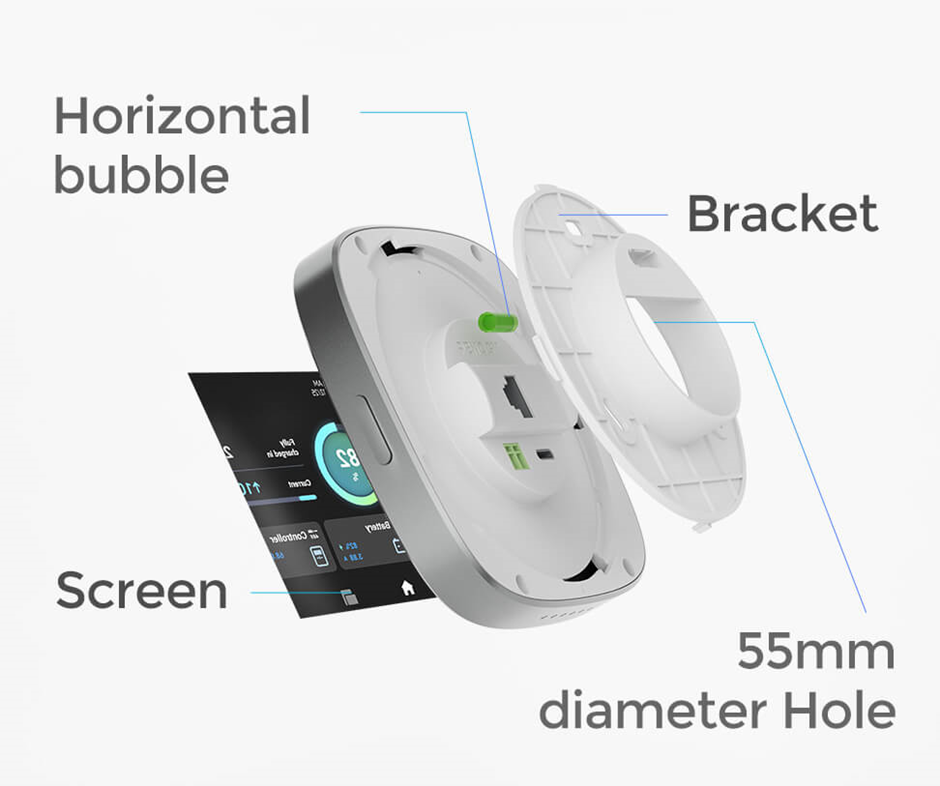

Complete a hole using a 55mm diameter punch and get all components of the device stand.
Step 2

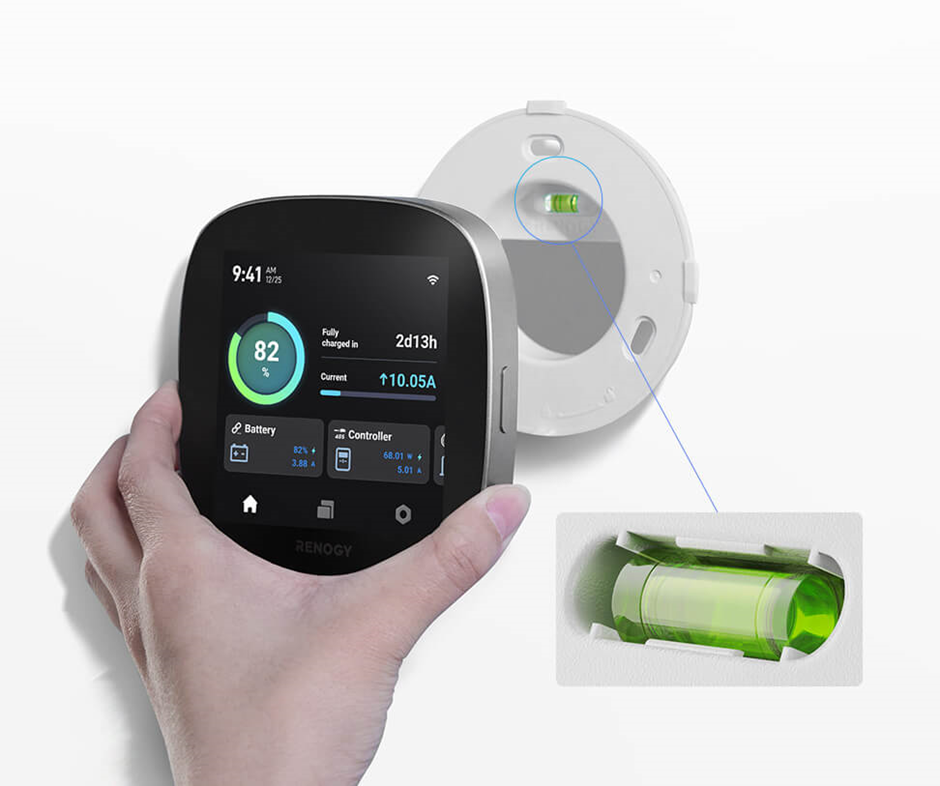

With an embedded horizontal bubble, it's easy to achieve the horizontality of the device and avoid repeated leveling.
Step 3

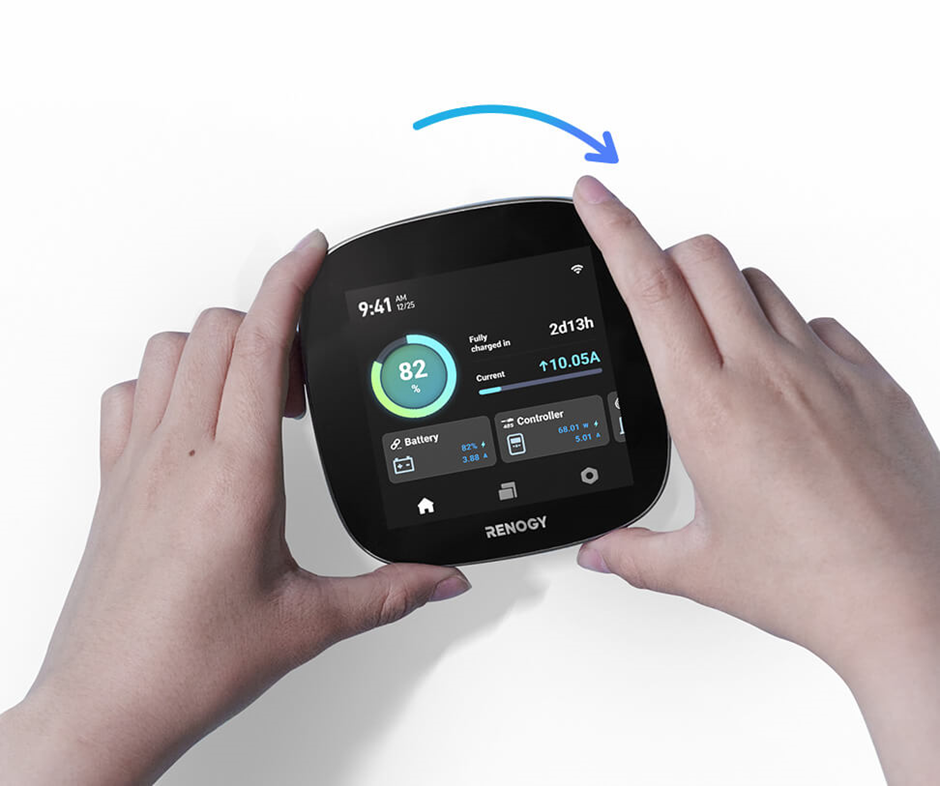

Rotate, click clack, it's done.
Installation on Table
Step 1

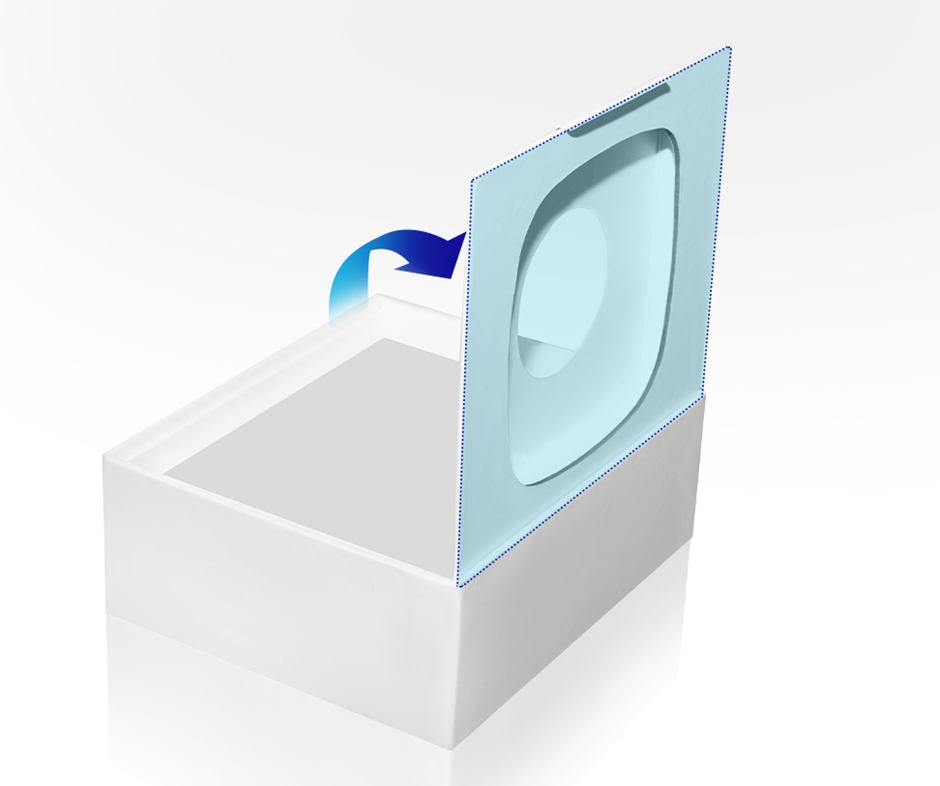

Pull out the holder layer of the box.

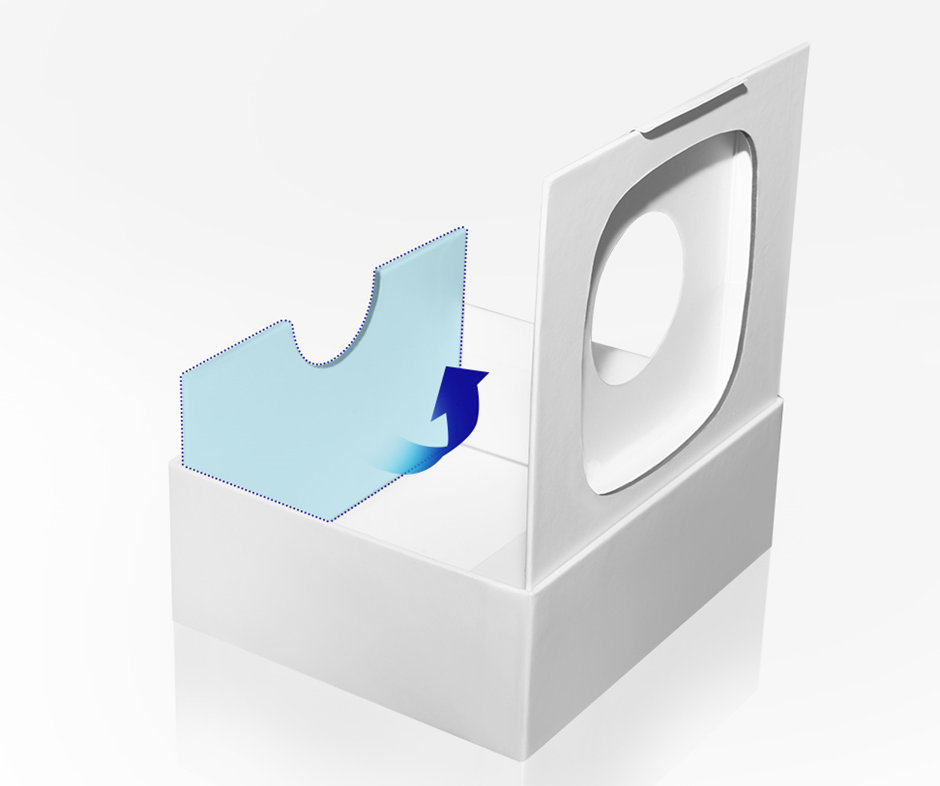

Step 2
Raise up the support layer.

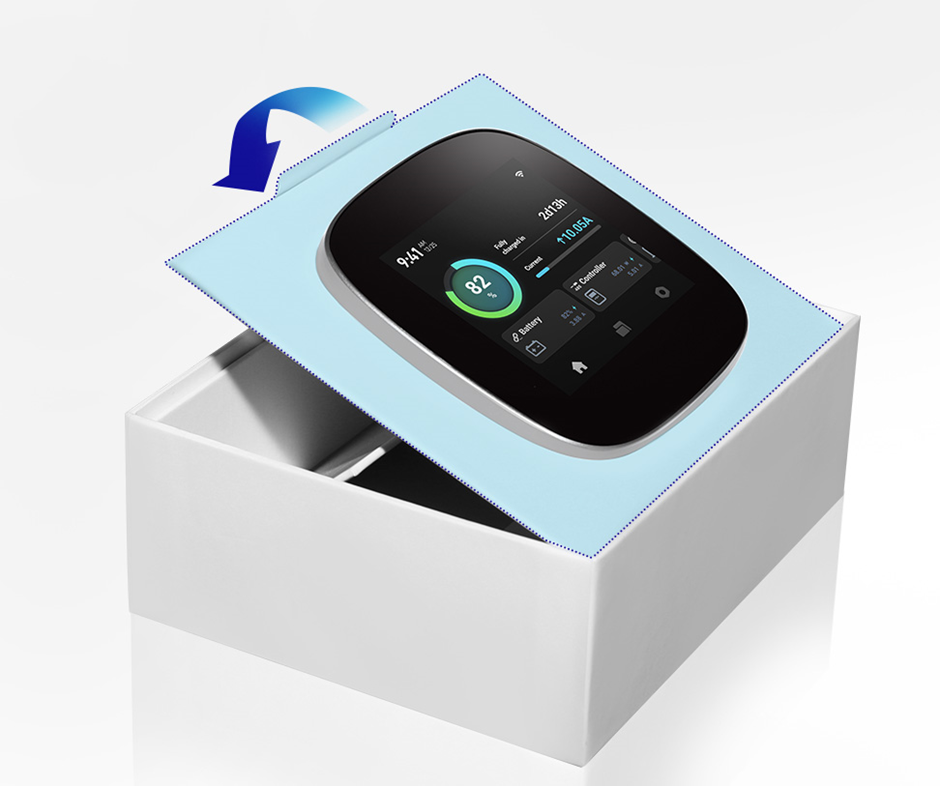

Step 3
Push back the holder layer and place One Core on it.
Specifications:
ELECTRICAL DATA | |
---|---|
Operating Voltage | 8-60 VDC (5 VDC for USB Type-C) |
Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W |
Communication | Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485 |
Touch Screen | 4 inches (480 x 480p) |
Leveling Range and Accuracy | ±89°, 0.1° |
GENERAL DATA | |
Model | RSHGWSN-W02W-G1 |
Operating Temperature | -4℉ to 158℉ (-20℃ to 70℃) |
Operating Humidity | 0% to 95% RH |
Operating Altitude | Less than 5000m above sea level |
Installation | Flush mount or place on a table |
Dimensions | 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) |
Weight | 0.28 lb (128g) |
Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
Warranty | 2 years |
Manufacturer's Downloads:
Package Includes:
Renogy ONE Core 1 x
|
Quick Guide 1x
|
Power Cable 5m
|
Mounting Screw M3.5 x14mm x4 (1 extra)
|
FAQ
The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.
No, the Renogy ONE Core does not support RV-C communication.
You can check it locally on Renogy ONE Core or remotely on the DC Home app when the app is paired with the Core via Bluetooth.
No, it does not come with a shunt. Please stay tuned for further updates on this in the near future.
We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay.
11. Do the configured smart scenes in Renogy ONE Core still work when it is offline?
Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0.
12. What kind of power systems can Renogy ONE Core work with?
