Product Description
BLUETTI EB55 Portable Power Station | 700W 537Wh
Meet all your need during camping
The compact and lightweight design makes the BLUETTI EB55 a Portable Power Station, perfect to use in a campervan, or on a camping trip. With capacity of 537Wh and built-in 700W (surge 1400W) strong inverter, EB55 could run most of your essential outdoor appliances and electronics such as mobile phones, mini freezers, radios, projectors and more.
Features:
- 700W AC Pure Sine Wave Inverter (1,400W Surge)
- 537Wh Capacity
- LiFePO4 Battery with 2,500+ Life Cycles to 80%
- 11 Outputs For Multiple Devices
- 6 Ways to Recharge (AC/Solar/Car/Generator/AC+Solar/Dual AC)
- 200W Max. Solar Input
- 400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously)
- Eco-friendly/Gas free/Quiet/Cost-effective
Battery Info:
- Capacity: 537Wh (22.4V. 24Ah)
- Cell Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Lifecycle: 2500+ Cycles to 80% Original Capacity
- Shelf-life: Recharge to 80% Every 3-6 Months
- Management System: MPPT Controller, BMS, etc.

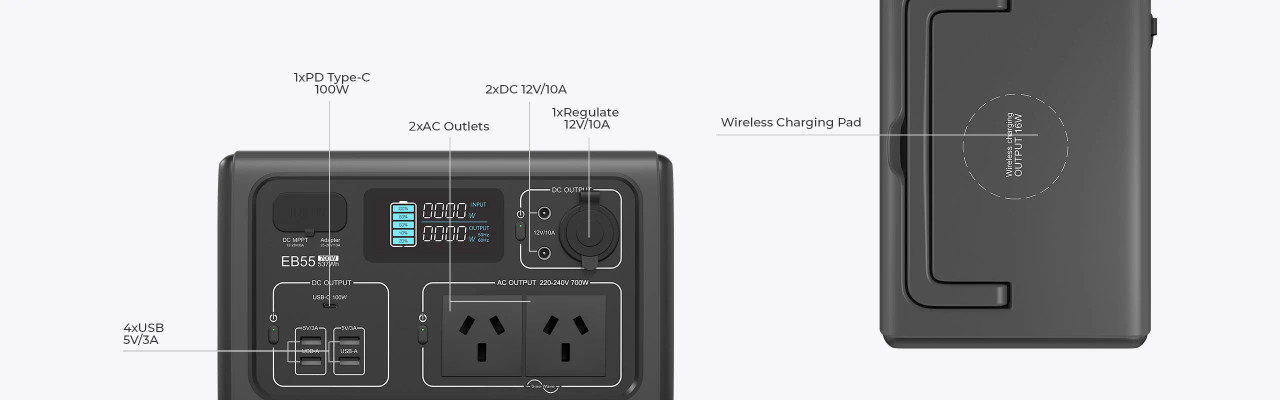

Output:
-
AC Outlets: 2x 220-240V AC Outputs, 700W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 1,400W
- USB-C Port: 1 x 100W Max.
- USB-A Port: 4 x 5V/3A
- 12V DC Outlets: 1 x 12V/10A (Car Outlet)
2 x 12V/10A (DC5521) - Wireless Charging Pad: 1 x 15W Max.
Input:
-
AC Adapter (200W): 3 Hours
- Solar (200W): 3 Hours (With prime sunshine, ideal orientation and low temperature)
- 12V/24V Car Outlet (100W/200W): 6.1 or 3.4 Hours
- AC+ Solar (400W): 1.8~2.3 Hours (With prime sunshine, ideal orientation and low temperature)
- Dual AC (400W): 1.8~2.3 Hours (Extra adapter is REQUIRED)
Recharge Times:
- AC Adapter (200W): 2.5-3 Hours
- 1x BLUETTI SP200 (200W): fully recharge from 0-100% in 4-5 hours.
- 1x BLUETTI SP120 (120W): fully recharge from 0-100% in 6-6.5 hours.
- 12V Car Adaptor: 12V port, in 6 hours/24V port,in 3 hours (0-100%)
-
AC+ Solar (400W): 1.8~2.3 Hours (With prime sunshine, ideal orientation and low temperature)
- Dual AC (400W): 1.8~2.3 Hours (Extra adapter is REQUIRED)
General:
-
240V Split Phase Bonding : No. Need 240V power source.
- Scalability: No. Enter for BLUETTI expandable power stations
- Pass-through Charging; Yes

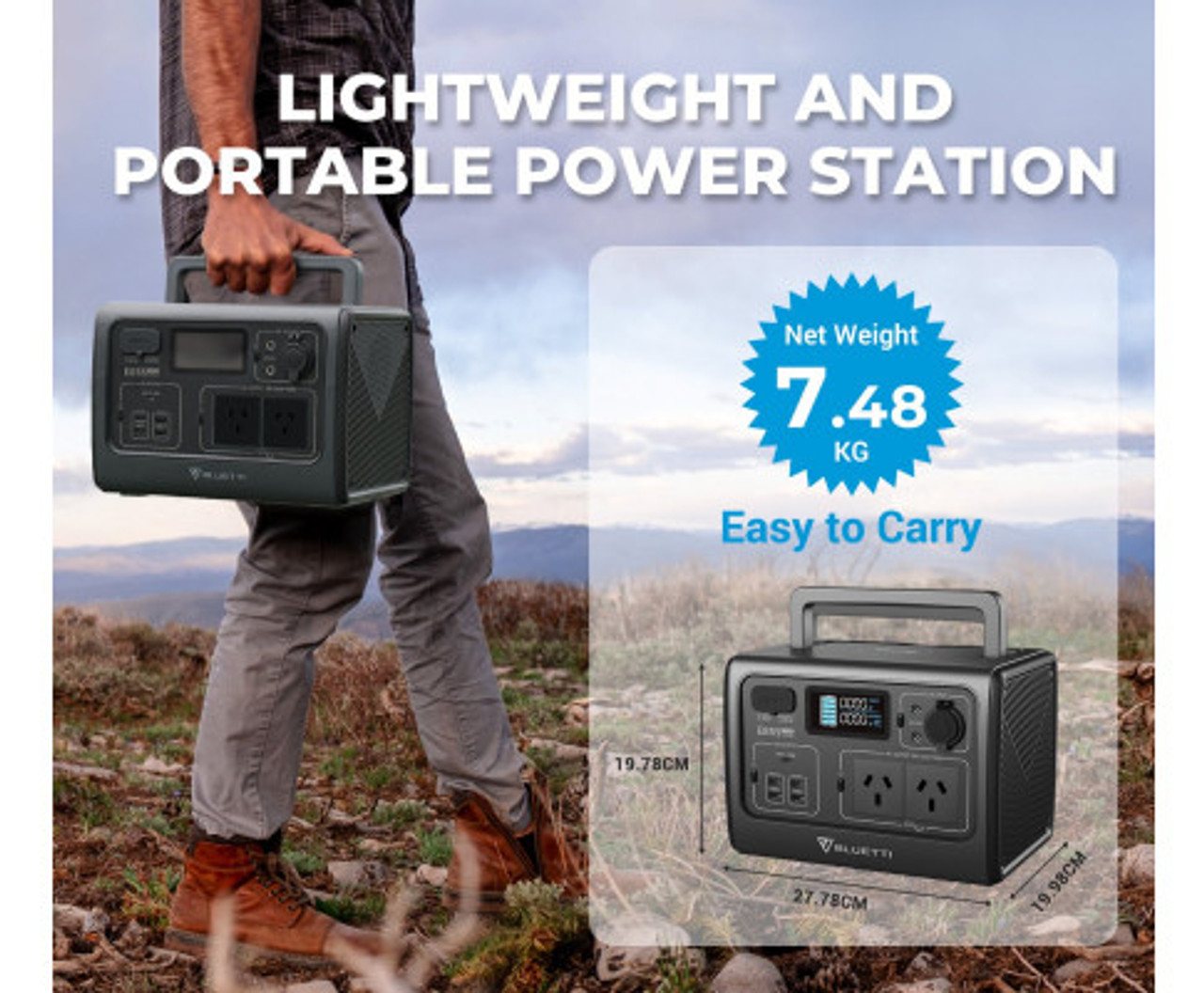

- Weight: 16.5lbs(7.5kg)

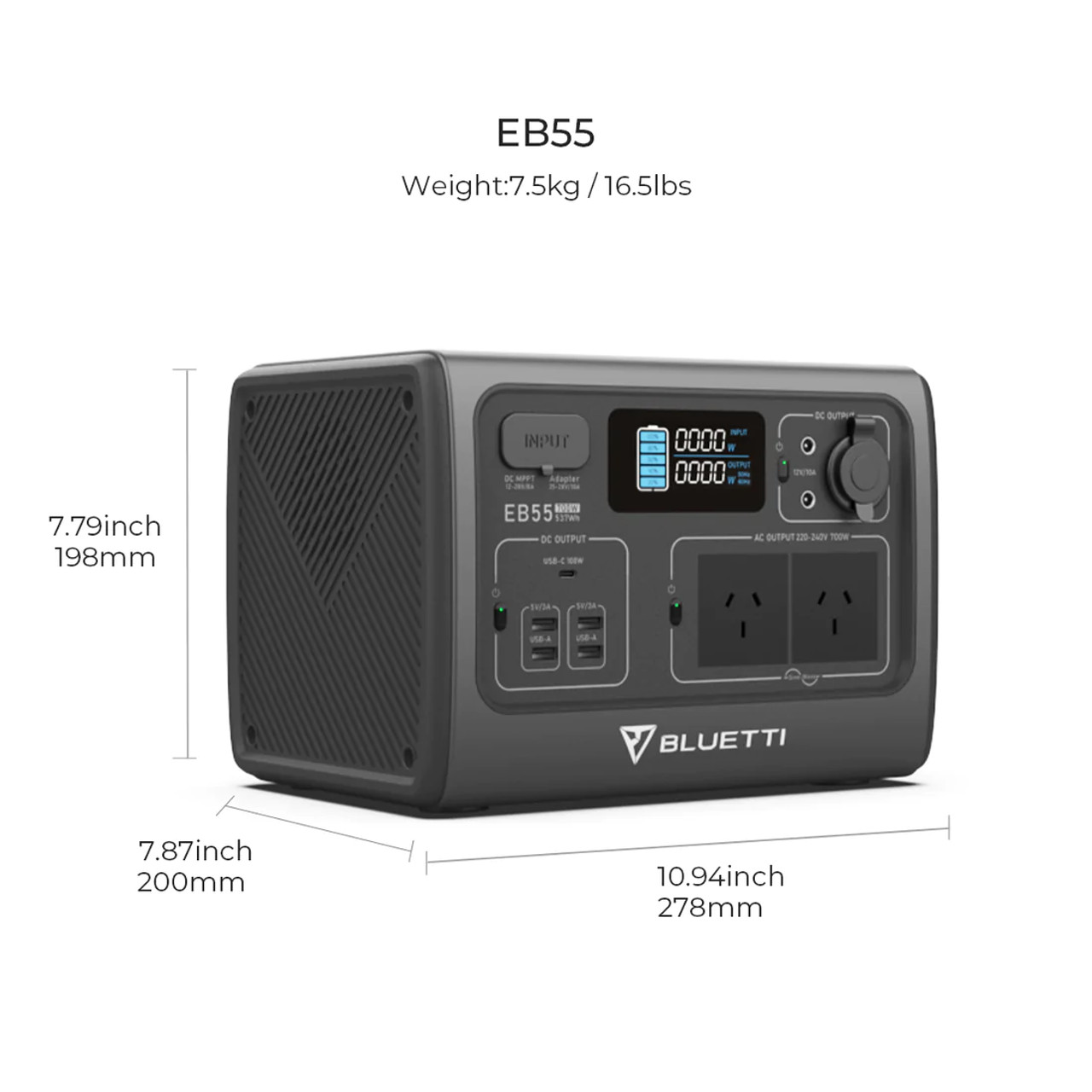

- Dimensions (LxWxD): 27.8cm x 20cm x 19.8cm (10.94*7.87*7.79 inches)
- Operating Usage Temperature:-10 - +40°C (14-104°F)
- Certification: CEC, DOE, FCC, QC3.0, CA Prop 65
- Warranty: 24 Months

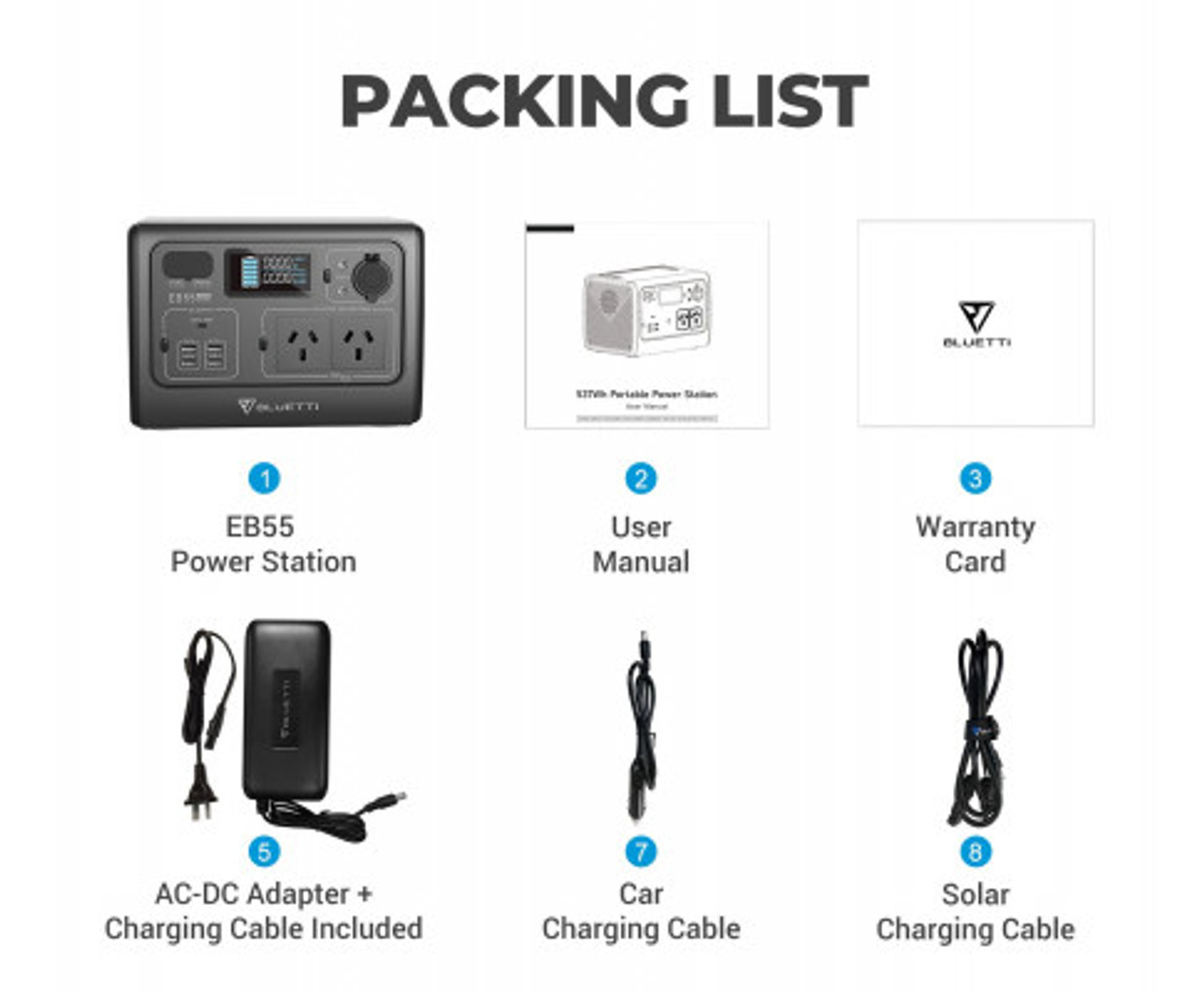

In the Box
- 1x EB55 Portable Power Station
- 1x AC Adapter + Charging Cable
- 1x Car Charging Cable
- 1x Solar Charging Cable
Manufacturers Info (Click on link and a new web page will open)
Bluetti EB55 Portable Power Station Manual
FAQS
Question 1: How do I know whether my appliance can work well with the EB55?
- Calculate the total wattage of your devices. EB55 should work if the load doesn't exceed its rated 700W.
- For some devices with motor/compressor, the initial start-up power may be 2-4 times the rating, which may trigger overload/overcurrent protection.
Question 2: How long can it run my device?
- Running time = Battery capacity × DoD × η ÷ Device rated power
- DoD refers to Depth of Discharge and η is local inverter efficiency.
- For EB55, both DoD and η are 90%. If you run a 500W blender with it, the running time will be: 537Wh × 90% × 90% ÷ 500W ≈ 0.8hrs
Note:
- 1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
- 2) The above data is for reference ONLY.
Question 3: What kind of solar panel can charge this EB55?
PV input requirements for EB55:
- 1) Open Circuit Voltage (OCV) :12-28V; Input Power: 200W Max.;
- 2) Equipped with MC4 Connector. If your panel has an Anderson connector, please purchase Anderson to MC4 cable, separately.
Best Companion:
- 1x BLUETTI PV200 (200W), fully recharge from 0-100% in 3.5-4 hours.
- 1x BLUETTI PV120 (120W), fully recharge from 0-100% in 6-6.5 hours.
Note:
- The actual charging time depends on the weather, solar condition, and the angle of the solar panels.
Question 4: Can it charge and discharge simultaneously?
Answer:
- Yes, the EB55 supports pass-through charging; equipped with the premium LiFePO4 battery and the advanced Battery Management System, just feel free to use it the way that better suits your needs.But please note that this unit cannot be used as an UPS.
Question 5: What is the maximum input charging power of the BLUETTI EB55?
Answer:
- 200W Max.
Question 6: Does EB55 support BLUETTI App control?
- No.
Question 7: Can it be laid on its side to save space?
Answer:
- No. Long-term placement will make the internal structure loose, it is recommended to place the machine upright.
Question 8: Is it possible to replace the built-in battery?
- No. If the internal battery pack is faulty or even dead, please contact BLUETTI Customer Service.
Question 9: Can I expand its capacity by connecting with B230/B300 battery?
Answer:
- No.
