Touch Sensor Dimmer Switch/Button for LED Strip Lights. Can be used for Rv, Caravan, Camper or Ute Canopy Lighting
Replacing mechanical switch, Artistic facade, Easy operation, No Moving Parts.
Instructions for use:
1. Connect the power source and LED light according to the sketch map.
2. Power-on, Blue indicator will light; short press - controls On/Off of LED light; long press - controls LED light-dimmer.
---- SPECIFICATIONS TAB ---
- Operating Voltage: 5-24V DC
- Load Current: 3A
- Working Mode: short press - On/Off function; long press - light-dimmer function
- Size: Switch Diameter-23mm
- Connecting Wire Length: Male female head wire are 20cm respectively
- Connection: DC2.1*5.5 Female head wire(Input wire), connect to power supply and DC2.1*5.5 Male head wire(Output wire), connect to LED Light.

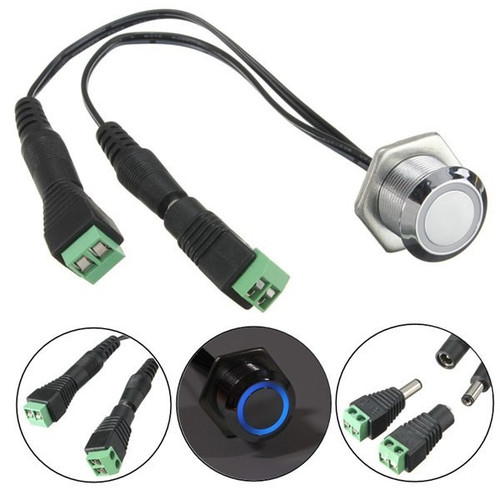

1 x Touching Type Sensor Detector Switch
1x Mounting nut
