Product Description
Renogy 200 Watts 12/24 Volt Black Frame Rigid Premium Solar Panel Kit with MPPT and Bluetooth Monitoring
Description:
Take command of your power system with a Renogy Premium Solar Kit. If efficiency and reliability are high on your wish list, the Renogy 200W Solar Panel Premium Kit is your choice.
The included 100W Solar Panels (4 options available) are not only sleek in size and weight, but are made of high efficiency monocrystalline solar cells.
The included Rover 20A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. The BT-1 Bluetooth module is also included which can be paired to the Renogy DC Home smart phone App. The Renogy DC Home smart phone App allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of mounting Z-Brackets ,one pair 20ft 10AWG Solar Adaptor Kit, one pair 8ft 10AWG Tray Cable and fusing components.
This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.
If you have any questions regarding this product, please contact us!
Key Features:
Efficient
- Monocrystalline panels come with high-efficiency cells, Cell efficiency:21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
Reliable
- EL tested solar modules; no hot-spot heating guaranteed
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
Safe
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an Solar Inline fuse and ANL fuse components for protecting your charge controller and battery
Specifications:
| 100W BLACK FRAME RIGID SOLAR PANEL (OPTIONAL) | |
|---|---|
| Maximum Power at STC: 100W | |
| Maximum System Voltage:600V DC (UL) | |
| Open-Circuit Voltage (Voc): 24.3V | |
| Short-Circuit Current (Isc): 5.39A | |
| Optimum Operating Voltage (Vmp): 20.3V | |
| Optimum Operating Current (Imp): 4.93A | |
| Weight: 6.6kg | |
| Dimensions: 110 x 50.9 x 3.5 cm | |
| Operating Temperature:-40°F to 176°F | |
|
Maximum Series Fuse Rating: 15A |
| Cell Efficiency:22% |
| MOUNTING Z BRACKETS (SET) | 8FT 10AWG TRAY CABLES (A PAIR) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 10 |
| Four Nuts | Temperature: -40°F to +185°F |
| 2FT 10AWG ANL FUSE CABLE | ANL 20A FUSE SET |
|---|---|
| Length: 2ft | Current Rating: 20A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to +194°F | Interrupt Capacity: 180A (48V) |
| 20A ROVER CHARGE CONTROLLER | BT-1 BLUETOOTH MODULE |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Max Solar Input Voltage: 100 VDC |
| Rated Battery Current: 20A | Mounting Oval: 0.30 x 0.18in |
| Rated Load Current: 20A | Net Weight: 3.08 lb. |
| Max. PV Input Short Current: 25A | Discharge circuit voltage drop: ≤ 0.15V |
| Max. Battery Voltage: 32V | Overall Dimension: 8.27 x 5.94 x 2.34 in |
| SOLAR PANEL SOLAR BRANCH CONNECTORS (PAIR) | |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Contact Resistance: 1m |
| Temperature: -40°F to +194°F | Unmating Force:147.51Ft·lb |
| Contact Material: Copper, silver plated |
Download Links:

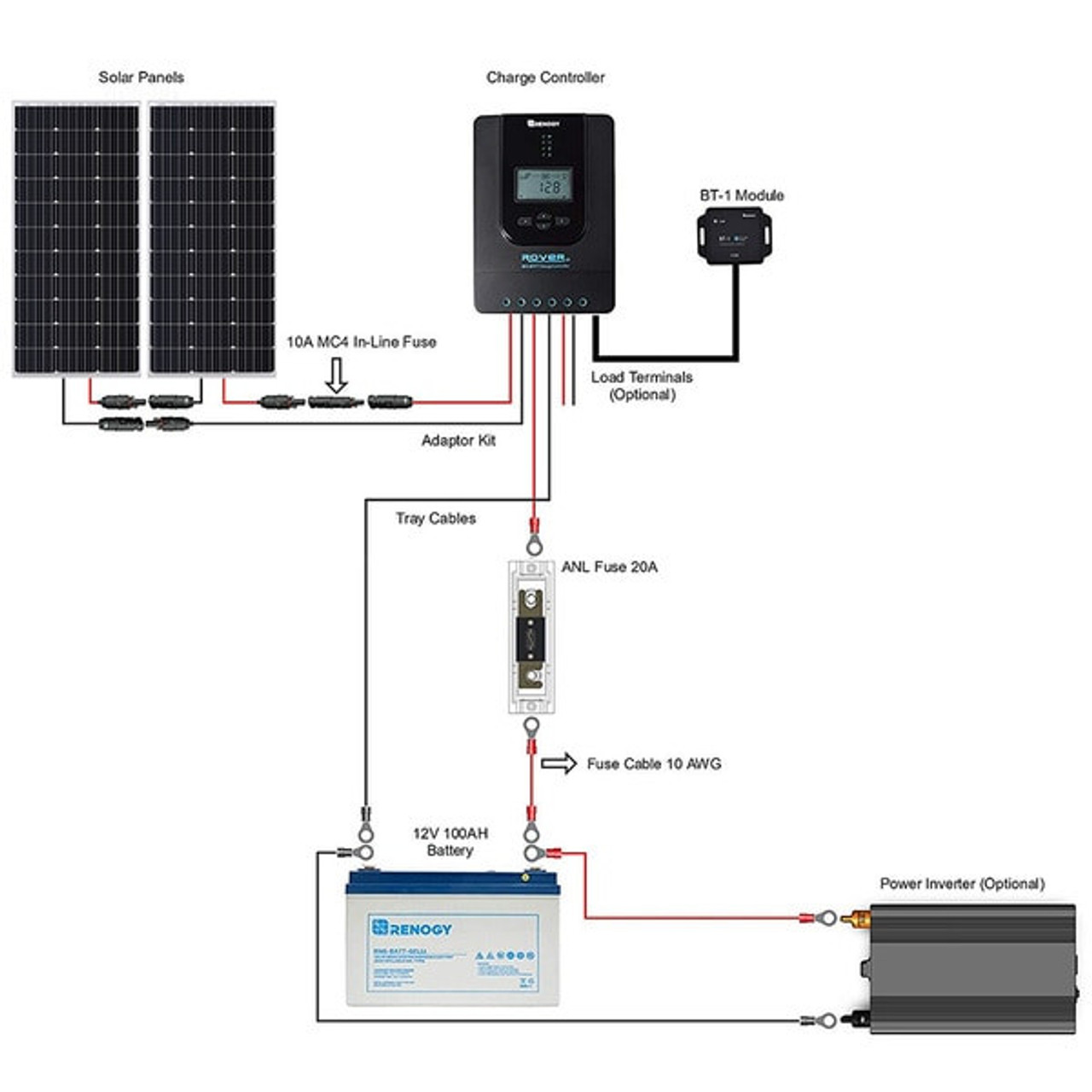

Whats in the Kit:
1x Solar Adaptor Kit Cables Connecting Solar Panel to Controller
1x Renogy Solar Tray Cables Connecting Charge Controller To Battery
2x Renogy Solar Panel Mounting Z Bracket -- Set of 4
1x Renogy Solar MC4 Branch Connectors MMF+FFM Pair
1x Rover Li 20 Amp MPPT Solar Charge Controller
1x BT-1 Bluetooth Module for Renogy Products w/ RS232 Port
2x Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame)
Manufacturers Info (Click on link and a new web page will open)
20A Rover Charge Controller User Manual
BT-1 Bluetooth Module User Manual
