Product Description

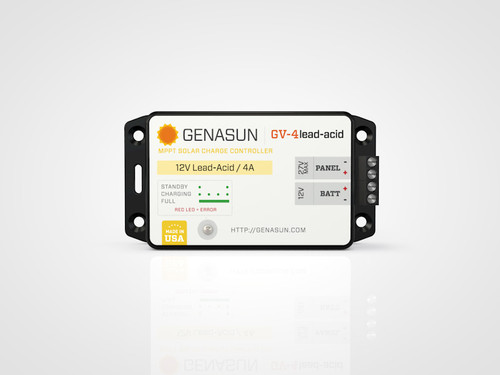

Genasun GV-4 4A 50W MPPT Custom Voltage Solar Charge Controller GV-4-Pb-CV
This regulator is setup in the factory to suit your batteries CV - Please note required charge voltage and send a copy of the battery spec sheet when placing order.
Overview
Small, critically efficient, and cost-effective, the GV-4 gets more from every panel.
- 4A 50W
- 99.85% Peak Efficiency
- High-speed MPPT
- Advanced electronic protection
- Tiny self-consumption (0.12mA)
- IP40
- 5 Year Warranty
Mission-Critical Reliability
Genasun controllers are deployed to the most remote locations on earth. They endure years at sea, harsh Antarctic winters, freezing conditions in the upper atmosphere on solar powered airplanes, and in a few off-the-map locations. Made in the USA, each controller is put through complete electrical testing to ensure reliability. If you need mission-critical power, this is your controller.
High-Speed MPPT: Always on Target
Not all Maximum Power Point Tracking controllers were created equal. Most use a sweep and sleep method that scans the entire voltage range every 30-60 seconds. That's okay for a clear day, but traditional controllers are constantly off target during changing cloud conditions – exactly when power is scarce and is needed the most. Genasun controllers adapt to changing light conditions 20 times every second. They are always on target, capturing every bit of available sunshine. Simply put, other controllers can't keep up.
Custom Voltages Available
A custom charge profile for lead-acid batteries can be programmed at the factory to match the specs of your lead-acid battery. To order a Custom Voltage controller, hit the "Customize" button in the SKU GV-4-Pb-CV on the e-commerce page, and select the voltages from the drop-down menu. For further information drop us an email to techsupport @ sunforgellc.com.
Made in the USA
Features
Surviving the Storm with Low Power Burn
Every controller uses power. While a typical PWM controller burns 9mA, the Genasun GV-4 burns a scant 0.125mA. That slow burn is perfect for waiting out a snow-covered panel, or a few bad weeks of clouds.
Partial Shade – In-City Applications
Genasun controllers shine in partial shade. The 50% power increase from Genasun’s advanced MPPT is often enough to prevent system downtime from partial shade. From street signs and tree branches, to coffee cups and stickers placed on panels by pedestrians, Genasun MPPT keeps partially shaded solar panels generating more power than any other controller.
Steady Power Source
Life is unpredictable. PWM controllers amplify that unpredictability. A small amount of shade can drop PWM power output to 2/3's of what a Genasun MPPT controller can draw from the same panel. By constantly adapting to changing light conditions, Genasun’s advanced MPPT controllers provide a steadier source of power, keeping your system running in uncertain weather.
Radio Silence
Most MPPT solar charge controllers broadcast Radio Frequency noise from the DC/DC conversion circuit. Unfiltered inputs and outputs waste energy and interfere with nearby or attached electronics. Genasun worked to eliminated RF emissions from our line of charge controllers. During third-party testing for FCC compliance, the test engineer asked us, “Is it on?”. Mission accomplished.
No Fans. No Relays.
Fans get clogged with dust and dirt. Relays eventually stop switching. Genasun controllers use advanced electrical design that obsoletes these parts. With fewer moving parts to wear out, Genasun controllers outlast the competition.
Fault Tolerance
Electronic reverse-battery protection.
Electronic reverse-panel protection
Warranty & Support
The GV-4 solar charge controllers carry a 5-year warranty on materials and workmanship. Genasun’s warranty does not cover damage due to abuse or operation beyond the rated specifications.
Specifications
Genasun GV-4 50W 4A MPPT Solar Charge Controller
| Maximum Recommended Panel Power | 50 W |
| Rated Battery (Output) Current | 4 A |
| Nominal Battery Voltage | 12 V |
| Max Input Voltage | 27 V |
| Recom. Max Panel Voc at STC | 22 V |
| Minimum Battery Voltage for Operation | 7.2 V |
| Input Voltage Range | 0 V - 27 V |
| Maximum Input Short Circuit Current | 4 A |
| Maximum Input Current** | 7 A |
| Charge Profile | Multi-Stage with Temperature Compensation |
| Absorption Voltage | 14.2 V |
| Absorption Time | 2 Hours |
| Float Voltage | 13.8 V |
| Charging Output Voltage Range | 7.2 V - 18 V |
| Charging Output Voltage Range | 7.2 V - 18 V |
| Battery Temperature Compensation | -28 mV/°C |
| Operating Temperature | -40°C - 85°C |
| Maximum Full Power Ambient | 50°C |
| Electrical Efficiency | 96%-99.85% typical |
| Tracking Efficiency | 99% typical |
| MPPT Tracking Speed | 15 Hz |
| Operating Consumption | 0.125 mA (125 uA) |
| Night Consumption | 0.09 mA (90 uA) |
| Environmental Protection | IP40 (Nickel-Plated Brass & Stainless Hardware) |
| Connection | 4-position terminal block for 12-30 AWG wire |
| Weight | 2.8 oz (80 g) |
| Dimensions | 4.3" x 2.2" x 0.9" (11 cm x 5.6 cm x 2.5 cm) |
| Warranty | 5 years |
**Maximum current that the controller could draw from an unlimited source. This specification is not intended for determining PV input.
