Product Description
Bluetti DC Charging Enhancer (D050S)
Features
- Applicable Models & Application: AC200P/AC200Max/AC300: B230/B300/EB150/EB200P, AC200P/Max
- Enable more charging methods like additional solar, car, and lead-acid battery charging.
- 500W Max input

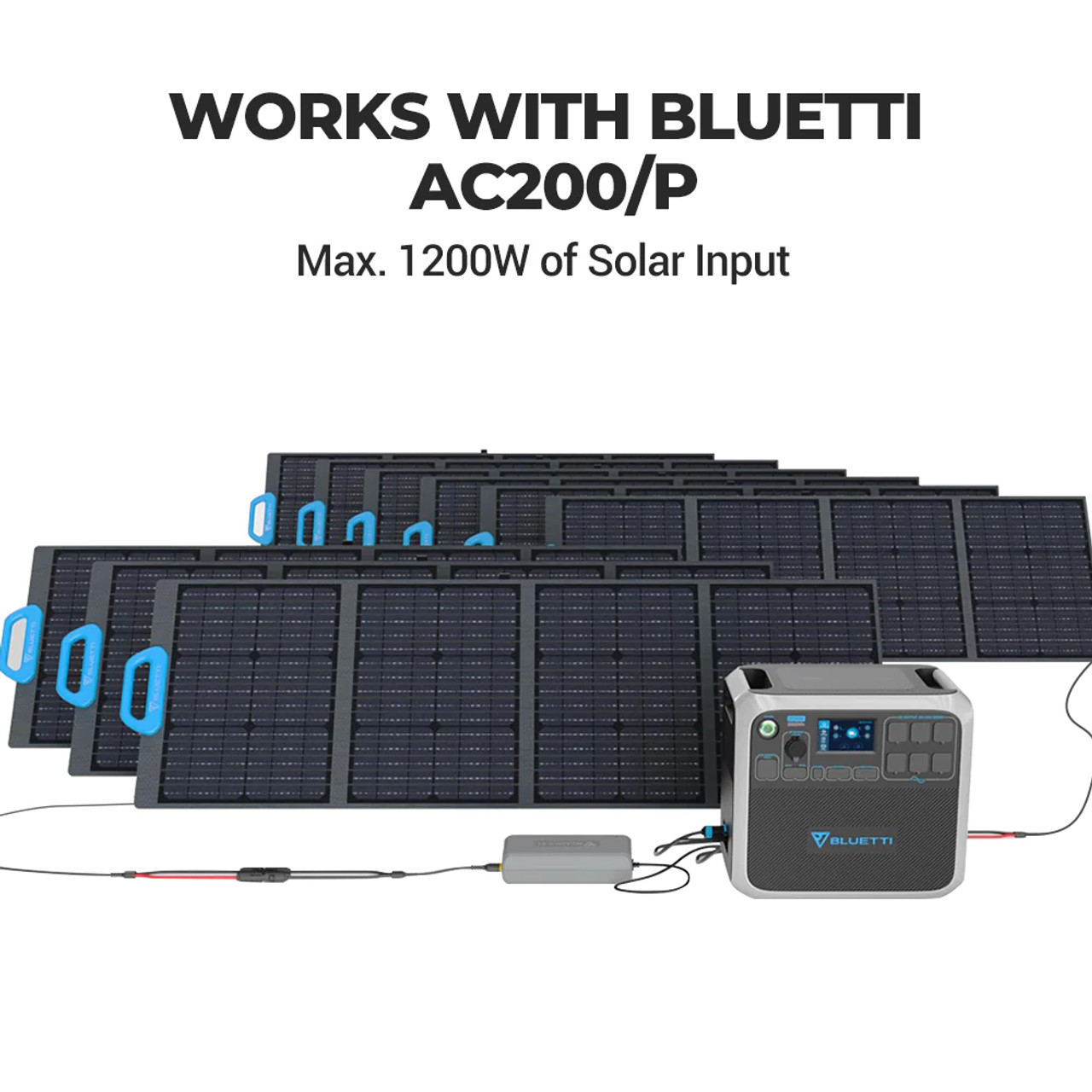

- Increase the PV input rate to 1200W for the BLUETTI AC200/AC200P; 1400W for the BLUETTI AC200Max.
- Increase the overall capacity of the BLUETTI AC200/AC200P by connecting them with B230/B300.
Included:
- DC Charging Enhancer (D050S)
- Solar Charging Cable (XT90-F to MC4)
- Car Charging Cable (XT90-F to Cig Plug)
- User Manual
- Warranty Card
- Certificate
- (Optional) Lead Acid Battery Charging Cable (XT90 to Red/Black Clamp)
Application Idea - In Vehicle Charging:
So you want vehicle charging through the alternator and solar at the same time?
The AC200P/AC200Max/AC300: B230/B300/EB150/EB200P, AC200P/Max have two charging inputs, solar charging through the aviation type plug and the 7909 charging port (which is usually for AC). In a vehicle you can us a DC converter (like the Orion 12/24-20A) through this Bluetti Charging Enhancer D050S and then also feed solar into the normal solar input. As an example on the AC200Max this would be a max of 1400W (Solar port 900W + DC port 500W) of in vehicle charging.
NOTE:
The solar input (Aviation Type Plug) has a MPPT charge controller build into the AC200Max though the 7909 port has no charge controller and relies on the external AC adapter/charger or a D050S Charging Enhancer to regulate that input.
Manufacturers Info (Click on link and a new web page will open)
Enable More Charging Methods
