Product Description

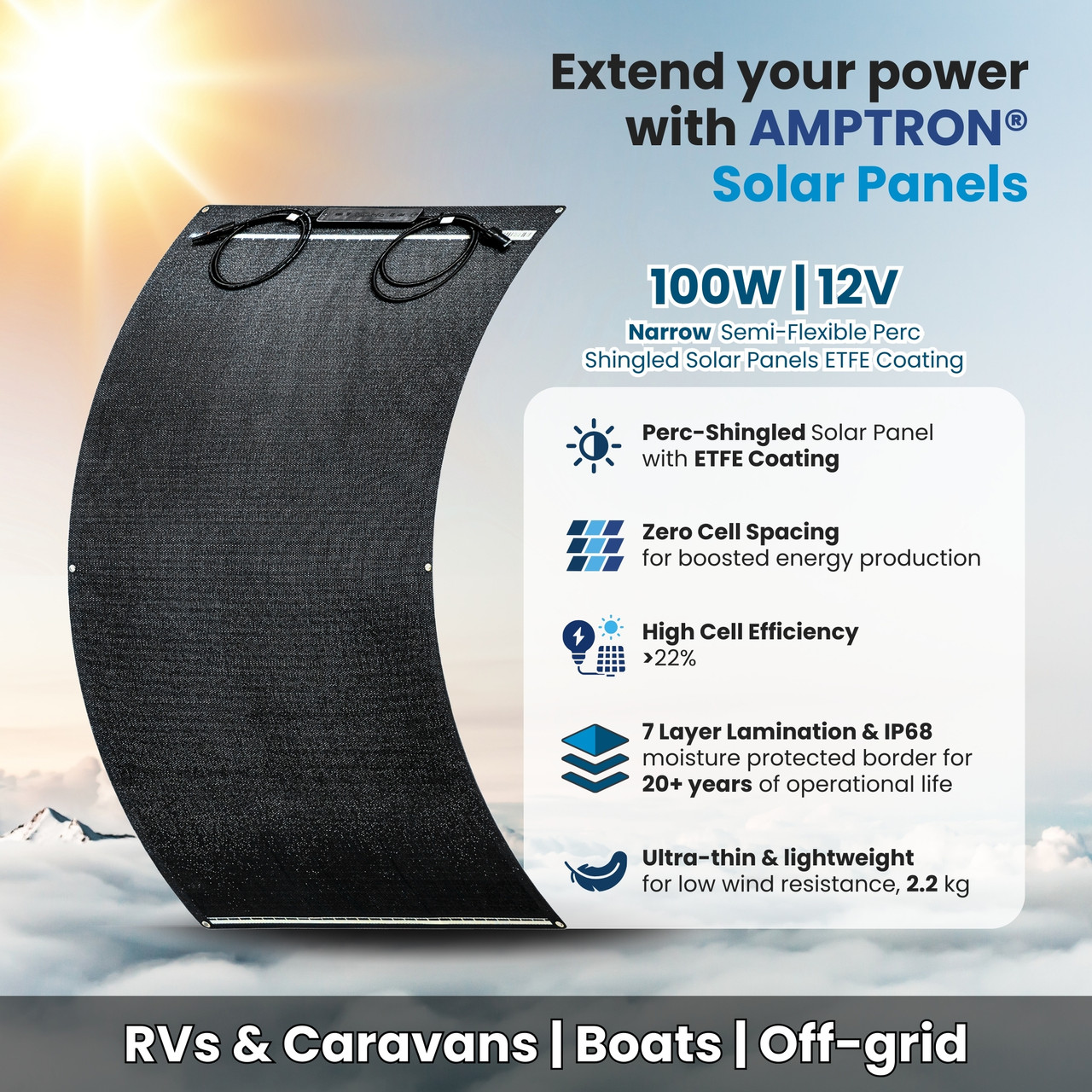

Amptron 100W 12V Semi-Flexible Perc-Shingled Solar Panel with ETFE Coating
This new Semi-Flexible solar panel range is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble free performance over the module life.
Features:
The Semi-Flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble-free performance over the module life.
The solar cells use PERC Shingle-cell technology to achieve zero cell spacing, which effectively increases the light-receiving area of the module. Other features:
- Ultra-thin & lightweight.
- Outstanding electrical performance in higher temperatures and low irradiation.
- Robust moisture ingress protection
- Rigid, waterproof junction Box.
- The Solar panels also include an industrial grade ETFE coating for long life and
durability
Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-FLEX-17.4-100BV10
|
100W Narrow 12V Semi-Flexible Perc Shingled Solar Panels ETFE Coating
|
|
Maximum power rating
|
Pmax 100 watts
|
|
|
Solar Panel dimensions
|
L-1035mm x W-540mm x H-3mm
|
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power
|
Imax 5.75 Amps
|
|
|
Voltage at max power
|
Vmax 17.4 Volts
|
|
|
Short circuit current
|
Isc 6.09 Amps
|
|
|
Open circuit voltage
|
Voc 20.5 Volts
|
|
|
Max System Voltage
|
600 Volts
|
|
|
No of cells
|
90
|
|
|
Cell Efficiency
|
22%
|
|
|
Temperature Range
|
-40℃ to +80​℃
|
|
|
Weight
|
2.2kg
|
Technical Datasheet
Warranty:
AMPTRON® warrants each AMPTRON® branded solar panels sold by AMPTRON® or any of its authorised dealers or distributors worldwide, to be free of defects from the date of sale for 2 years. Further to this, AMPTRON® also warrants the solar cells if the power output is less than 80% of Peak Power under standard test conditions within 20 years of the date of purchase. The warranty period starts at the time of purchase and is referenced by the invoice date recorded on the AMPTRON® business system. The warranty covers failure due to defects in material or workmanship. Subject to the issues listed below, AMPTRON® will repair or replace the Solar Panel and or parts of the Solar Panel if the components in question are defective in materials or workmanship. Warranties are non-transferable and stay with the original purchaser of our products. Customers should adhere to all AMPTRON® documentation and product guidelines
WARRANTY PROCEDURE:
Each AMPTRON Solar Panel is designed to operate in accordance with the specifications and in the conditions set out in any datasheet relating to each battery model and limits and constraints which are stated in those specifications and conditions for a Solar Panel.
In the unlikely event your Solar Panel fails, between AMPTRON® & the claimant, we will arrange a remote assessment to understand the Solar Panel performance issue, faults, or failure. In the event this assessment does not reset the Solar Panel issue, together we will arrange to return the unit to one of our product warranty assessment stations. Once received in our assessment station we will examine the Solar Panel to identify the performance issue & determine if the product is repairable. Should our investigation find, the product can be repaired, it will be repaired at no cost and returned to you. If it is not repairable and the issue was caused by a manufacturer defect in materials and workmanship, we will replace the battery at no cost. In some cases, your warranty claim may require special order parts and it can take up to three months for us to source the necessary parts and components.
NOT COVERED BY THIS WARRANTY:
The manufacturer is not obligated to warrant the AMPTRON® Solar Panel in question, if defects are related to damages caused by and not adhering to “Industry Best Practice”, abuse, neglect, incorrect wiring in the battery charge system, or from the following:
- Improper storage, transport handling or installation & operation.
- Corroded hardware
- Manufacturer codes tampering or removal
- Connection with reverse polarity or other inappropriate connections
- Physical damage to a Solar Panel surface coating or enclosure.
- Failure to properly install the Solar Panel, in addition to keeping the Solar Panel properly maintained
- Using or connecting the Solar Panel incorrectly
- Breakage from collision, fire or freezing (which includes damage from extreme heat or cold, improper storage, water damage).
Use of the Solar Panel for a purpose or in environmental conditions for which it was not designed or sold into or used outside the specified or normal operating ranges for a Solar Panel. Changes in the Solar Panel which occur due to climate or other external influence (for example: foreign material contamination, water entry, exposure to extreme heat or cold or to solvents, lightning, connection with reverse polarity or other inappropriate connection, interference from insects and pests and other issues).
Use of the Solar Panel in a more complex system which does not correctly consider Solar Panel design, Solar Panel specifications, the impact of other elements of that system. Normal wear and tear. Repairs, alterations, or modifications to the Solar Panel (unless done by AMPTRON).
AMPTRON’s warranty does not cover spent or worn-out Solar Panels or internal tampering. The warranty does not cover consequential damage or injury, rental, freight, labour, or administrative costs. Warranty replacement or repair will only occur after the Solar Panel is returned to one of our assessment stations for assessment and the Solar Panel failure is deemed to be a genuine warranty claim.
NON AMPTRON® WARRANTIES:
AMPTRON® authorised dealers and distributors may offer an additional warranty to the Manufacturer’s Limited Warranty. Manufacturer is not responsible for dealer or distributor created warranties or any claims that may arise from said warranties.
WARRANTY DISCLAIMER:
AMPTRON will not be responsible for any expenses related to installation/removal, electrical system tests, battery charging, loss of time or other expenses which should be considered incidental damages, including all shipping charges associated with any third party, contractors, resellers & agents.
INDUSTRY BEST PRACTISE:
The Term ‘Industry Best Practice’ relates to how a cross section of professionals within the DC / AC related industries would view what is considered Right or Wrong in a wiring system. It is not an attempt by AMPTRON to void any warranty obligations, however considering a large proportion of product issues are related to installation or system-based problems of some nature, its ensuring that an AMPTRON product is installed and used correctly as originally intended. All AMPTRON products have an installation manual which shows the requirements for installation, with ‘Industry Best Practice’. Installations shall be compliant to relevant standards including but not limited to AS/NZ3001 (Electrical Installation Transportable Structures) and AS/NZ 3004 (Electrical Installation Marinas and Boats).
PLEASE NOTE – For all product warranty returns the claiming customer is responsible for all return to base shipping costs. Should the product be identified as a genuine warranty repair or replacement after the assessment, AMPTRON will refund all shipping costs associated with the warranty claim paid by the customer. Should the product be identified operational (good working order) and operating within the products specification limits then a product test and assessment service fee of $100.00 excluding GST plus the return shipping costs will be charge back to the claiming customer. As always, our commitment to excellent customer service is our top priority. Please contact us if you have further questions about our warranty and return policy.
