Product Description

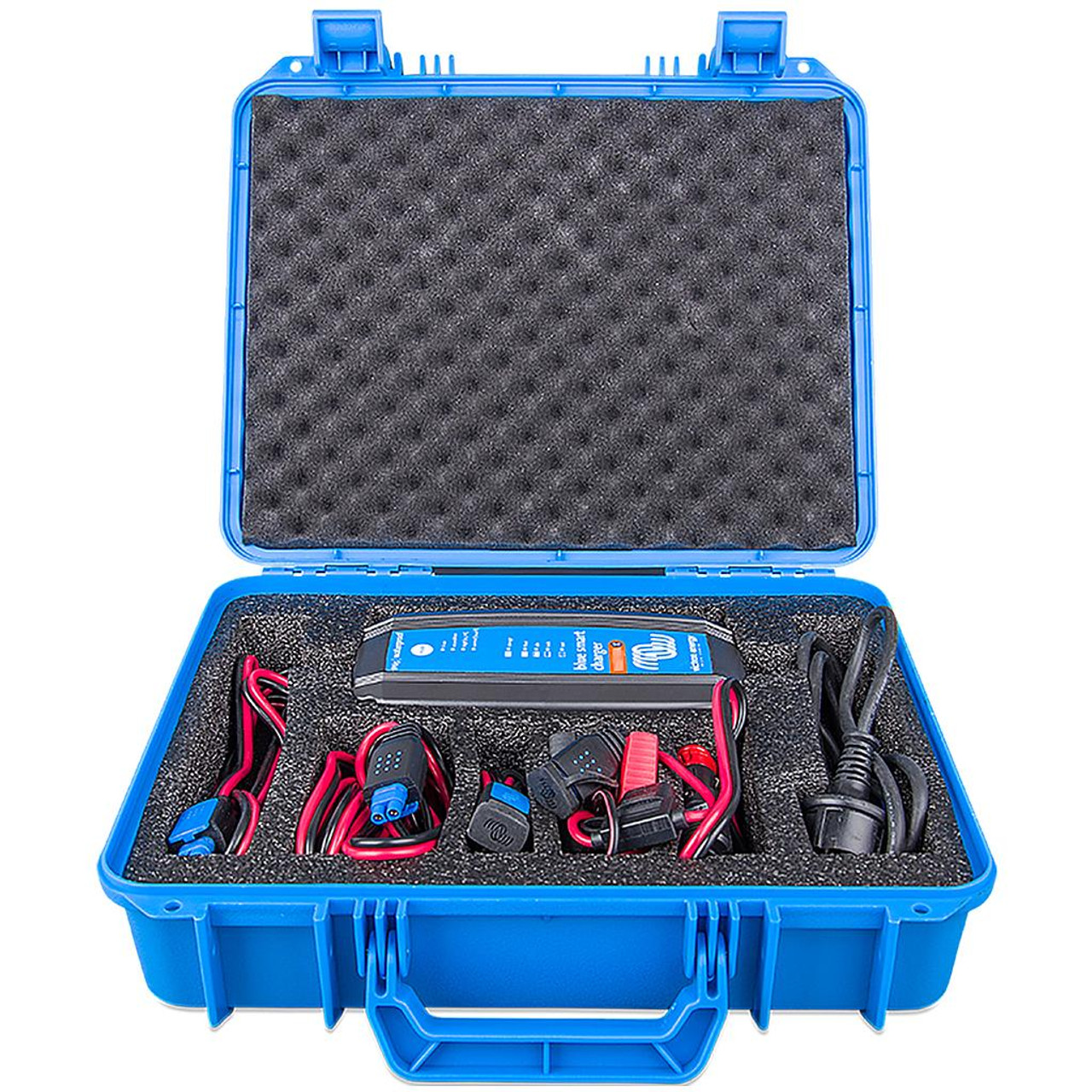

Victron Pro Charge Kit 12V / 25A includes:
- BPC940100200 Case for Victron BPC chargers
- BPC122531014R Blue Smart IP65 charger 12/25
- BPC900110014 M8 Eyelet connector with 30A ATO fuse
- BPC900100014 M6 Eyelet connector with 30A ATO fuse
- BPC900200014 2 Metre charger extension cable
Victron IP65 Blue Smart battery chargers
The Blue Smart IP65 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Features:
- Water, dust and chemical resistant
- Seven step smart charge algorithm
- Potential recovery of fully discharged ‘dead’ batteries
- Automatic power supply function
- Severe cold performance: down to -30°C
- Several other battery life enhancing features
- Temperature compensated charging
- Low power mode to charge smaller batteries
- Li-ion battery mode
- Ultra high 95% efficiency “green” battery charger
- Setup and configure, readout of voltage and current by Bluetooth Smart
The battery is charged, smartly... to perfect condition - The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Connect the battery with ease - The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely - The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
The VictronConnect app - Setup, readout and configure your Blue Smart IP65 Charger via your smartphone. You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen the readout of voltage and current is default available. Download your app for iOS and Android here at https://www.victronenergy.com/live/victronconnect:start
Storage mode: less corrosion of the positive plates - Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger during more than 48 hours.
Temperature compensated charging - The optimal charge voltage of a lead-acid battery varies inversely with temperature. The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charge process. The temperature is measured again when the charger is in low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed.
Li-ion battery mode - The Blue Smart Charger uses a specific charging algorithm for Li-ion (LiFePOâ‚„) batteries, with automatic Li-ion under voltage protection reset.
Ultra high efficiency “green” battery charger - With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Durable, safe and silent -
-
Low thermal stress on the electronic components.
-
Protection against ingress of dust, water and chemicals.
-
Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail.
-
The chargers are totally silent: no cooling fan or any other moving parts.
Reconditioning - A lead-acid battery that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with low current up to a higher voltage.
Recovery function for fully discharged batteries - Most reverse polarity protected chargers will not recognize, and therefore not recharge a battery which has been discharged to zero or nearly zero Volts. The Blue Smart Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Specifications
|
Blue Smart IP65 Charger |
12 V 4/5/7/10/15/25 A |
24 V 5/8/13 A |
|
Input voltage |
230 VAC |
|
|
Efficiency |
94% |
95% |
|
Standby power consumption |
0,5 W |
|
|
Charge voltage 'absorption' |
Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V |
Normal: 28,8 V High: 29,4 V Li-ion: 28,4 V |
|
Charge voltage 'float' |
Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V |
Normal: 27,6 V High: 27,6 V Li-ion: 27,0 V |
|
Charge voltage 'storage' |
Normal: 13,2 V High: 13,2 V Li-ion: 13,5 V |
Normal: 26,4 V High: 26,4 V Li-ion: 27,0 V |
|
Charge current |
4 / 5 / 7 / 10 / 15/25 A |
5 / 8 /13 A |
|
Low current mode |
2 / 2 / 2 / 3 / 4 / 10 A |
2 / 3 / 4 A |
|
Temperature compensation (lead-acid batteries only) |
16 mV/ºC |
32 mV/ºC |
|
Can be used as power supply |
Yes |
|
|
Back current drain |
0,7 Ah/month (1 mA) |
|
|
Protection |
Reverse polarity Output short circuit Over temperature |
|
|
Operating temp. range |
-30 to +50°C (full rated output up to 30°C) (cables retain flexibility at low temperature) |
|
|
Humidity (non-condensing) |
Max 95% |
|
|
ENCLOSURE |
||
|
Battery-connection |
Black and red cable of 1,5 meter |
|
|
230 V AC-connection |
Cable of 1,5 meter with CEE 7/7, BS 1363 plug (UK) or AS/NZS 3112 plug |
|
|
Protection category |
IP65 (splash and dust proof) |
|
|
Weight |
IP65 12V 25A 24V 13A: 1,9kg Other: 0,9kg |
|
|
Dimensions (h x w x d) |
IP65s 12V 4/5A : 45 x 81 x 182 mm IP65 12V 7A 24V 5A : 47 x 95 x 190 mm IP65 12V 10/15A 24V 8A : 60 x 105 x 190 mm IP65 12V 25A 24V 13A : 75 x 140 x 240 mm |
|
|
STANDARDS |
||
|
Safety |
EN 60335-1, EN 60335-2-29 |
|
|
Emission |
EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
|
|
Immunity |
EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
