Product Description

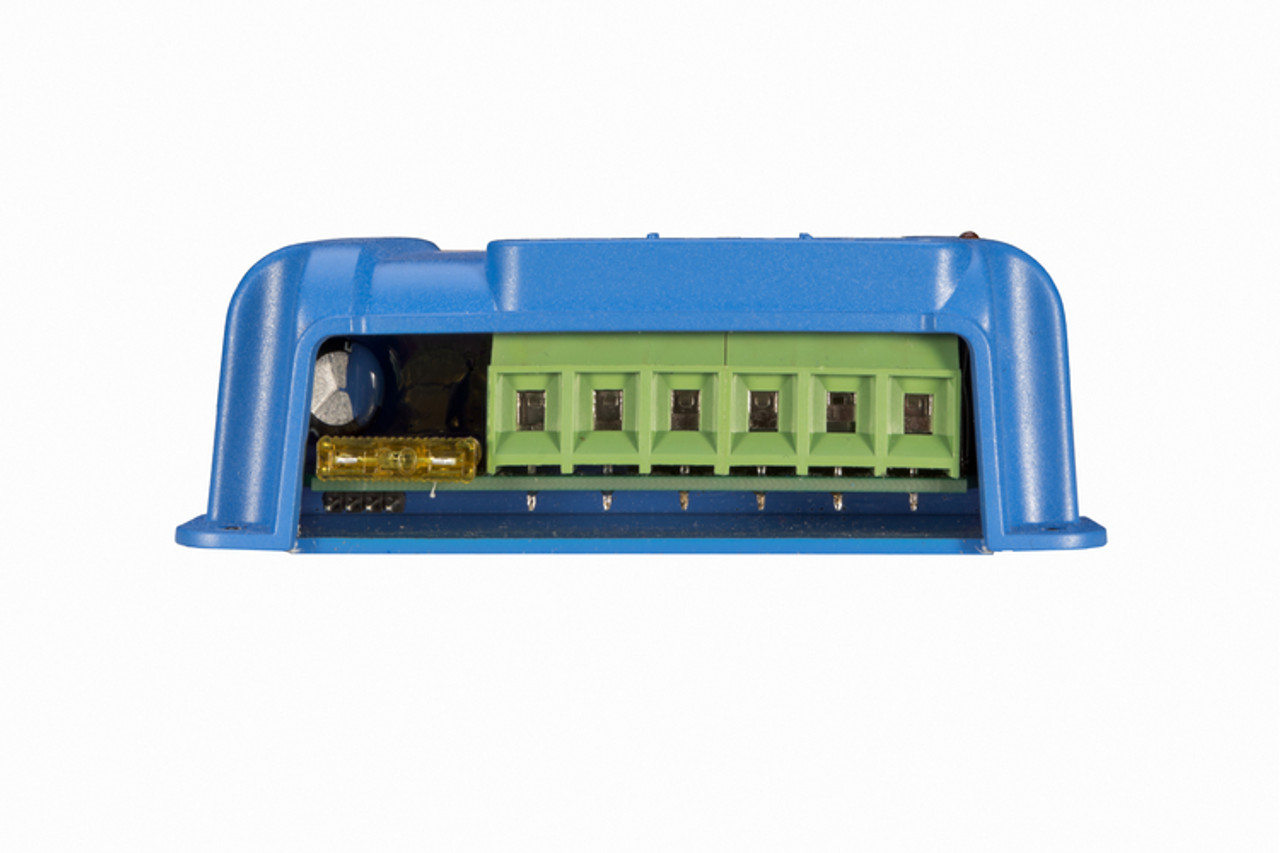

Victron 15A BlueSolar MPPT 75/15 (12V/24V) Solar Charge Controller Regulator
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Suggest the Smartsolar range works better for most applications - contact us if guidance is needed.
Bluetooth options:
- BlueSolar models do not have Bluetooth.
- SmartSolar models have Bluetooth.
BlueSolar models: can be retrofitted to have Bluetooth by connecting the VE.Direct Bluetooth Smart dongle. Advantage: the product is not Bluetooth accessible when the dongle is not connected.
SmartSolar models: the bluetooth module can be disabled.
VE. Direct
Especially For a wired data connection ti a Colour Control panel, PC or other devices.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on our website for details
Day/night timing and light dimming option
See the software section on our website for details
Programming, real-time data and history display options
- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle an and the MPPT app discovery sheet for screenshots.
- Color Control Panel
Specifications - BlueSolar Range
Victron Energy Downloadable Data click HERE
Victron MPPT model names explained
MPPT 150/45, the first number is the maximum PV open circuit voltage. The second number, 45, is the maximum charge current. Use the Victron MPPT Excel sheet or Online MPPT Calculator for PV sizing calculations.
For more information about PWM or MPPT charge controllers, read the Victron whitepaper: which solar charge controller: PWM or MPPT?
