Exotronic 200W Portable Folding Solar Panel + Victron SmartSolar 75/15

Product Description

Exotronic 200W Portable Folding Solar Panel + Victron SmartSolar 75/15

Solar Panel

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution.  The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

Each folded section is wired independently, so if one side is shaded the other side will still operate.

These modules include bumpers on the corners and fold-away legs,

Also included is an array of premium quality cables to suit any situation:

• 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
• 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
• Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

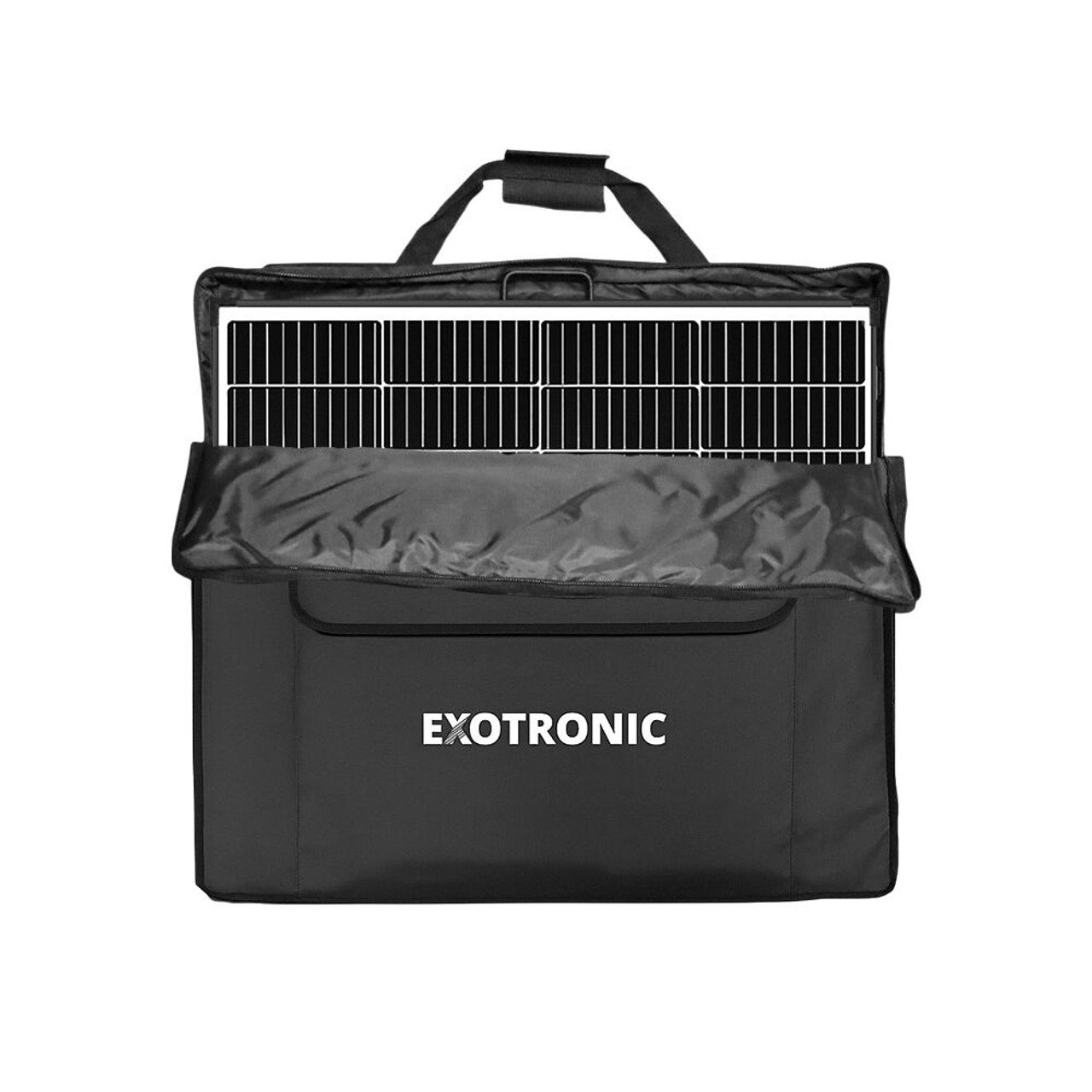

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

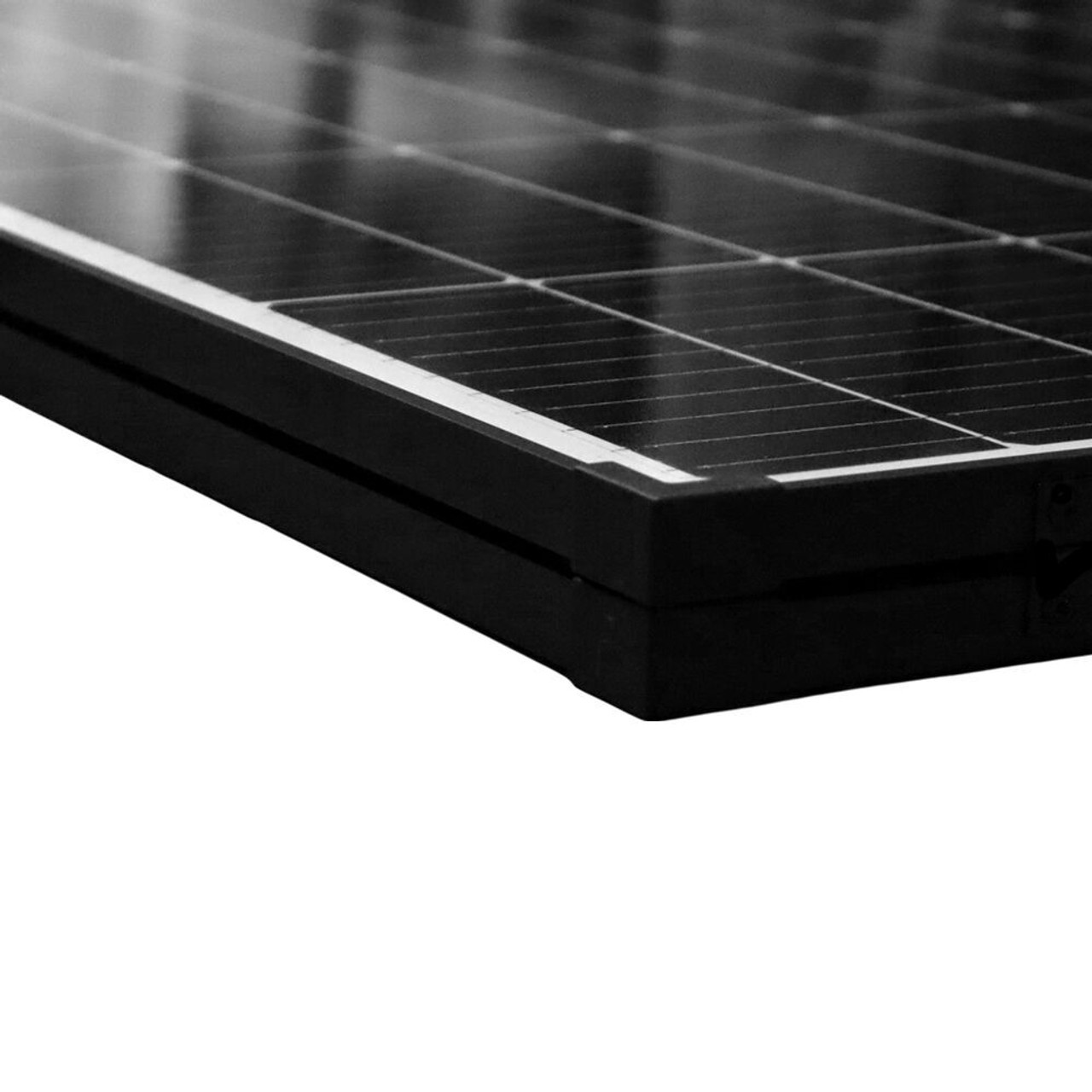

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

Solar Charge Controller

For best performance and safety of the solar controller, place the solar controller near your battery under cover, this reduces heat transfer from the MPPT to the solar panel and vice-versa.

Tracer Dream 75V Bluetooth Series adopts MPPT technology. Using a 32 bit CPU, stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit is increased up to 98.5% and the Pmax tracking accuracy up to 99.5%. So our MPPT can trace the accurate Pmax in the shortest time, even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.

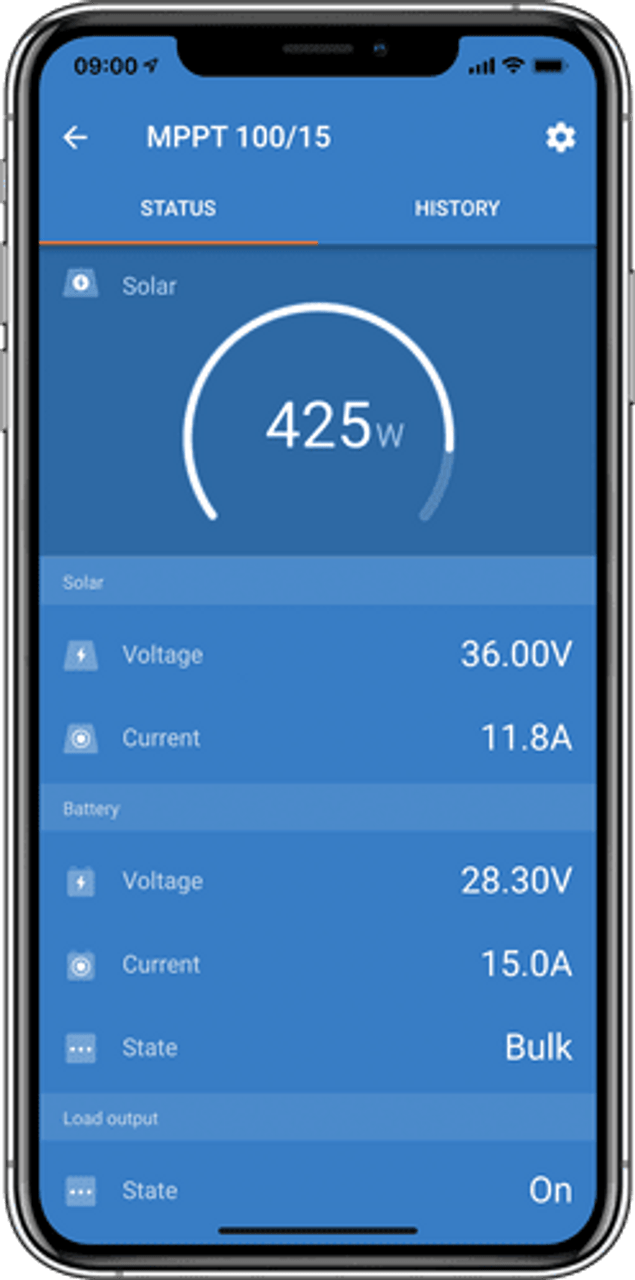

• Download the Bluetooth App on your Apple or Android – or search LD iConnect. – Default password 1234
• Advanced MPPT technology, fast and stable. Tracks the Maximum Power Point, the tracking accuracy is up to 99.5% efficient
• Adopting Synchronous Rectifier Technology, significantly improving the transfer efficiency of circuit, up to 98.5% efficient
• Accurately identifying and tracking the multi peak power point function PV array limited power input function, to ensure that the controller does not overload operation under any conditions
• Wide range of Maximum Power Point of PV array, Maximum PV input Voltage 75V.
• 12/24VDC system voltage automatic recognition
• Humanized LCD display, dynamic display operation data and working state
• Built-in operation log
• Multi load control mode: Normal Mode, Sensor Mode and Timer
• 3 stages charging mode with multiple chemistry modes: Sealed, Gel, Flooded, Lithium and many user adjustable settings (Default Lithium)
• Temperature Compensation Function
• Accumulation function of charging and discharging, actual time display power generation function
• Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Overvoltage, Overload, Short circuit and more

Solar Panel Specifications:

Charge Controller Specifications

Warranty

Solar Panel

Exotronic foldable solar modules including framing are warranted to the original purchaser to be free of fault in both workmanship and materials for a period of 60 months when used in mobile and marine applications from the date of the authorised dealers invoice.  Provided that;

The product is correctly installed and/or used under normal operating conditions for which the product was intended;
All warranty claims must be received by an authorised Exotronic Dealer and then approved by Exotronic;

Exotronic reserves the right to repair, replace or refund or provide compensation due to a drop in value caused by a defect.

Accessories (Cables/Connectors, Canvas Bag)

Exotronic accessories including the cables, plugs and canvas bag are warranted to the original purchaser to be free of fault in both workmanship and materials for a period of 12 months when used in mobile and marine applications from the date of the authorised dealers invoice. Provided that;

The product is correctly installed and/or used under normal operating conditions for which the product was intended;
All warranty claims must be received by an authorised Exotronic Dealer and then approved by Exotronic;

Exotronic reserves the right to repair, replace or refund or provide compensation due to a drop in value caused by a defect.

Solar Charge Controller

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
