Product Description
Alvolta Ultra 440W Slim Portable Solarcase without Solar Controller
Key Points:
- A Grade Monocrystalline Cell with Aesthetic Black Frame and Backing Sheet
- High-Powered, Llightweight and slim
- Unregulated Design for use in multiple Applications
- 5 Year Warranty
Alvolta 440W Ultra Slim & Portable Solarcase
Power-Up your Caravanning and Camping with the High-Powered, Light-Weight and Compact Alvolta Ultra 440W Solarcase. One of the largest on the market.
Perfect for your 12V/24V setup, Alvolta solar panels are made using high quality A-Grade Monocrystalline cells.
Complete with sturdy aluminium frame and adjustable legs allowing tilt to the optimum angle. Plastic corner protection when in use and a protective carry bag when in transit or storage.
In place of the tempered glass a highly resistant thermoplastic polymer (PVDF) protects the solar cells and contributes to the cases light-weight property.
The kit includes a 10 meter 6mm2 extension lead and parallel connection lead with quick-disconnect provided by Anderson type connectors, along with heavy duty battery clamps and a separate protective pouch for the cabling accessories.
Features:
-
4x 110W High efficiency black-framed concertina folding mono-crystalline solar panels.
-
Series / Parallel configuration of solar modules providing high voltage and high power. Usable with both 12 and 24V systems.
-
Heavy-duty Aluminium frame with adjustable aluminium legs so solar panel can be tilted to optimum angle.
-
PVDF Sheeting for Cells providing protection and resistance.
-
Aesthetic black frame.
-
Aesthetic black cells.
-
IP65 weatherproof junction boxes.
-
Protective carry case for both the Solarcase and Cabling Accessories (separate case).
-
Quick release clasps for strong holding whilst folded and easy release for set-up.
-
No regulator which reduces the price.
Alvolta also provides a full range of monocrystalline solar modules ranging from 20W - 215W. They are designed to charge batteries in recreational applications, including vehicles, boats, caravans, motorhomes, or any other battery system.
Specifications:
Alvolta 440W Ultra Solarcase
| Model No. | ALV-440SPC |
| Cell Type | Monocrystalline |
| Peak Power (Pmax) | 440W |
| Power Tolerance | +/- 5% |
| Open Circuit Voltage (VOC) | 48VDC |
| Short Circuit Current (ISC) | 11A |
| Max Power Voltage (VMP) | 40VDC |
| Max Power Current (IMP) | 12A |
| Max System Voltage | 200VDC |
| Dimensions (Folded) | 1072x547x90mm |
| Dimensions (Unfolded) | 1072x2188x28mm |
| Weight | 13.2kg |
| Protection Rating | IP65 |
Download:
Alvolta 440W SolarCase Dimensions
Alvolta 440W SolarCase Datasheet

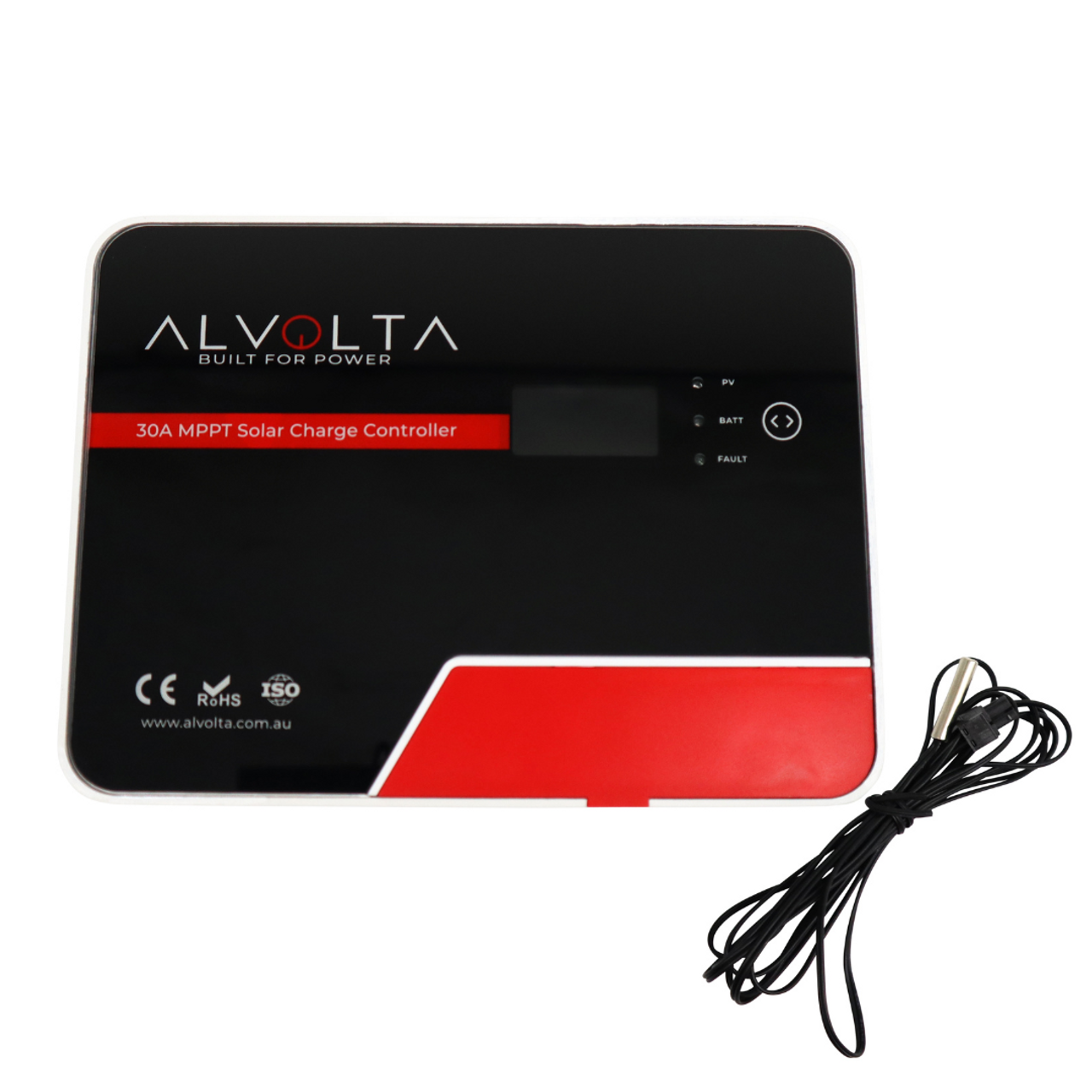

Alvolta 150/30 MPPT Solar Controller Datasheet
